Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear console box sub-assembly removal/installation are shown below.
NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replacement Part or Procedure | Necessary Procedure | Effect/Inoperative when not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) auxiliary battery terminal | Perform steering sensor zero point calibration | Lane Control System | Refer to INITIALIZATION [11/2018 - ] |
| Parking Support Brake System*1 | |||
| Pre-collision System | |||
| Lighting System (EXT) |
*1: When performing learning using the Techstream.

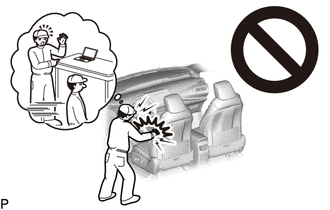

WARNING:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
Refer to PRECAUTION [06/2015 - ]
NOTE:
After the power switch is turned off, the navigation receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 90 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.
