Removal [06/2015 - ]: Procedure

  1. REMOVE REAR WHEEL HOUSE FRONT PLATE

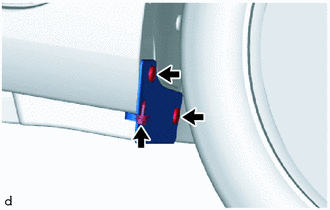

    1. GTY602872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 clips.

    2. Remove the screw and rear wheel house front plate.
