Components [06/2015 - ]
| *1 | LUGGAGE TRIM SERVICE HOLE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

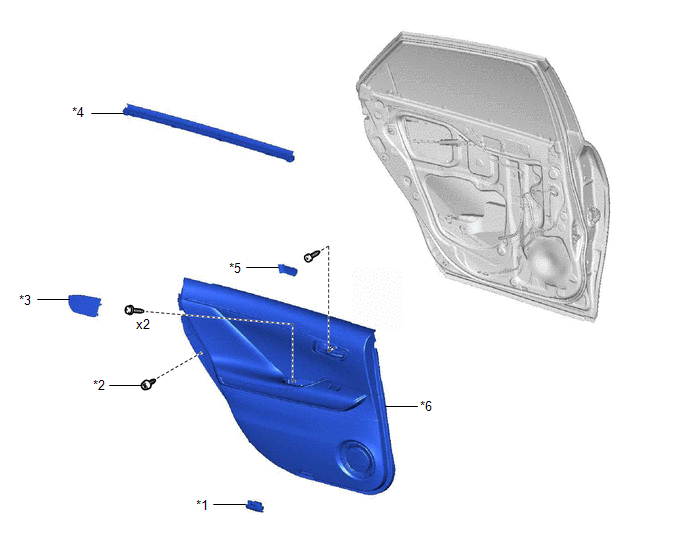

| *1 | COURTESY LIGHT ASSEMBLY | *2 | NO. 1 REAR DOOR STIFFENER CUSHION |
| *3 | REAR DOOR ARMREST COVER | *4 | REAR DOOR GLASS INNER WEATHERSTRIP |
| *5 | REAR DOOR INSIDE HANDLE BEZEL PLUG | *6 | REAR DOOR TRIM BOARD SUB-ASSEMBLY |
| Callout | Description | Callout | Description |

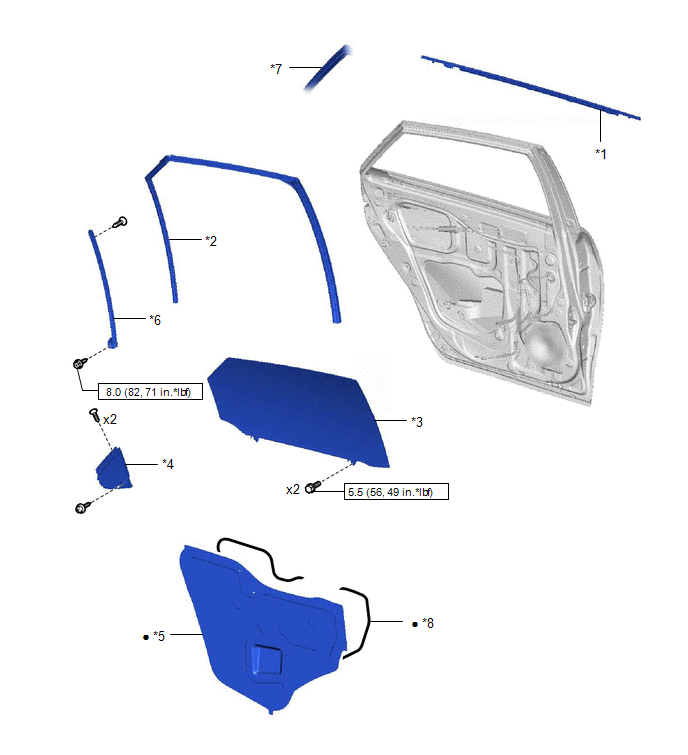

| *1 | REAR DOOR BELT MOULDING ASSEMBLY | *2 | REAR DOOR GLASS RUN |
| *3 | REAR DOOR GLASS SUB-ASSEMBLY | *4 | REAR DOOR REAR GUIDE SEAL |
| *5 | REAR DOOR SERVICE HOLE COVER | *6 | REAR DOOR WINDOW REAR LOWER FRAME SUB-ASSEMBLY |
| *7 | REAR DOOR WEATHERSTRIP LH | *8 | BUTYL TAPE |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
