Components [06/2015 - 11/2018]

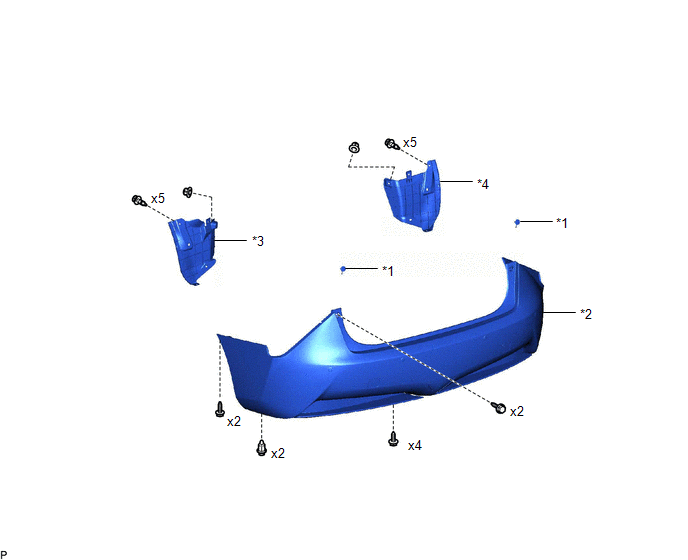

Fig 1: Rear Bumper Replacement Components [06/2015 - 11/2018] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 REAR BUMPER PLATE	*2	REAR BUMPER ASSEMBLY
*3	REAR BUMPER SIDE SEAL LH	*4	REAR BUMPER SIDE SEAL RH

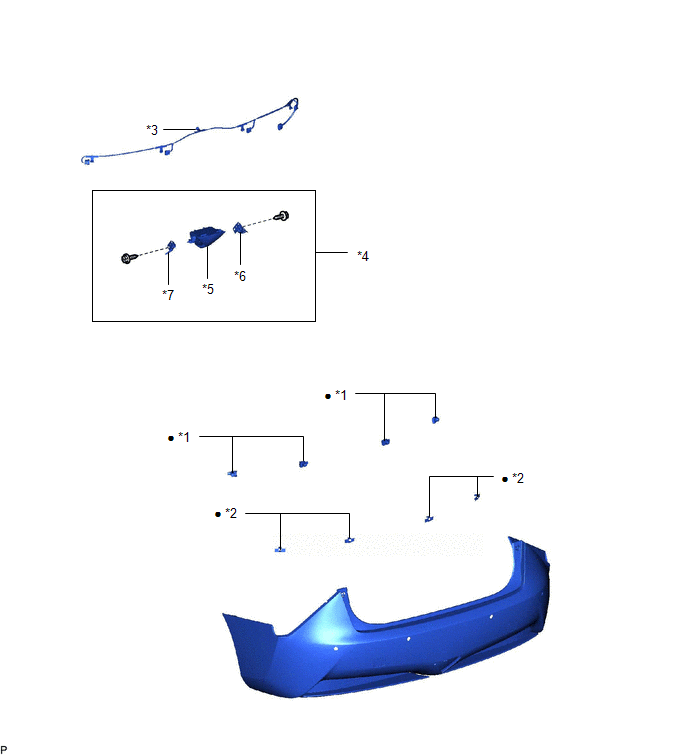

Fig 2: Rear Bumper Replacement Components [06/2015 - 11/2018] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 2 ULTRASONIC SENSOR	*2	NO. 2 ULTRASONIC SENSOR RETAINER
*3	NO. 3 LUGGAGE ROOM WIRE	*4	REAR FOG LIGHT ASSEMBLY
*5	REAR FOG LIGHT LENS AND BODY	*6	BRACKET A
*7	BRACKET B	-	-
•	Non-reusable part	-	-

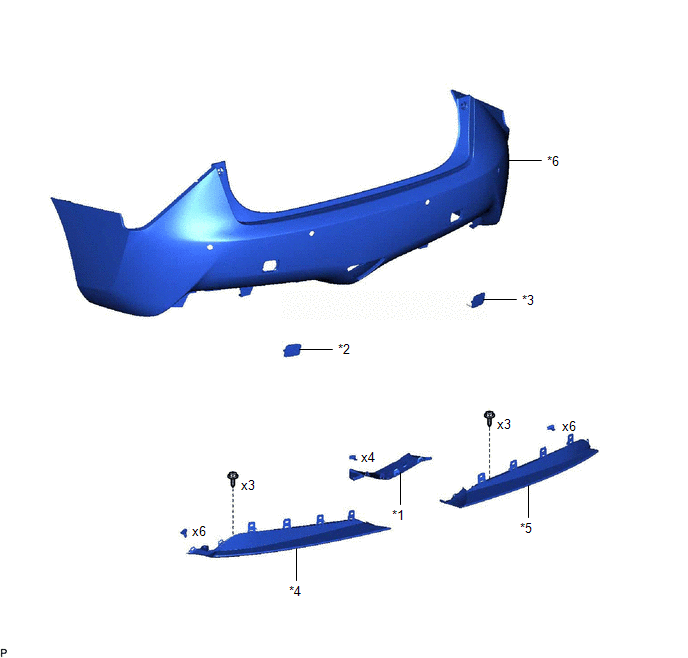

Fig 3: Rear Bumper Replacement Components [06/2015 - 11/2018] (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER REAR BUMPER BRACKET	*2	REAR BUMPER PLATE LH
*3	REAR BUMPER PLATE RH	*4	REAR SIDE SPOILER SUB-ASSEMBLY LH
*5	REAR SIDE SPOILER SUB-ASSEMBLY RH	*6	REAR BUMPER COVER

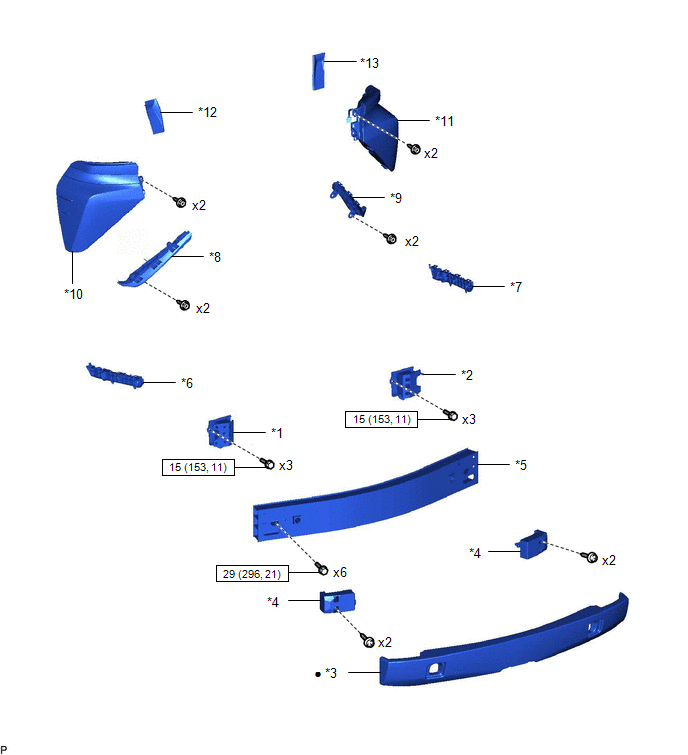

Fig 4: Rear Bumper Replacement Components With Torque Specifications [06/2015 - 11/2018] (4 Of 4)

Callout	Description	Callout	Description
*1	REAR BUMPER ARM SUB-ASSEMBLY LH	*2	REAR BUMPER ARM SUB-ASSEMBLY RH
*3	REAR BUMPER ENERGY ABSORBER	*4	REAR BUMPER PROTECTOR
*5	REAR BUMPER REINFORCEMENT SUB-ASSEMBLY	*6	REAR BUMPER SIDE RETAINER LH
*7	REAR BUMPER SIDE RETAINER RH	*8	REAR BUMPER SIDE SUPPORT LH
*9	REAR BUMPER SIDE SUPPORT RH	*10	REAR COMBINATION LIGHT ASSEMBLY LH
*11	REAR COMBINATION LIGHT ASSEMBLY RH	*12	REAR COMBINATION LIGHT COVER LH
*13	REAR COMBINATION LIGHT COVER RH	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
