Removal [06/2015 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR EMBLEM
    1. Remove the luggage compartment door cover.
    2. Remove the luggage compartment door lock cylinder assembly.
    3. Remove the luggage compartment door outside garnish sub-assembly.
    4. Remove the luggage compartment door outside garnish.
    5. Install the luggage compartment door outside garnish.
    6. Apply protective tape around the luggage compartment door emblem.

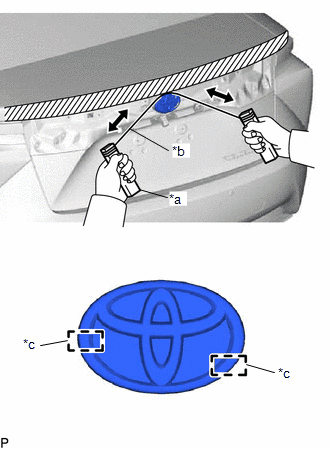

      GTY543248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      *c Location Pin
      Protective Tape
    7. Using an infrared light, heat the luggage compartment door emblem.

      Heating Temperature

      Item Temperature
      Luggage Compartment Door Emblem 40 to 60°C (104 to 140°F)
      3 to 5 minutes
      WARNING:
      GTY583275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Infrared Light
      • Do not touch the infrared light and heated parts.
      • Touching the infrared light may result in burns.
      • Touching heated parts for a long time may result in burns.
      1. Insert a piano wire between the vehicle body and luggage compartment door emblem.
    8. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    9. Pull the piano wire and cut the double-sided tape that holds the luggage compartment door emblem to the vehicle body.
      NOTE:

      Be careful of the location pin positions.

      1. Remove the luggage compartment door emblem.
    10. Remove the protective tape.
    11. Install the rear light assembly LH
    12. Install the rear light assembly RH
    13. Install the luggage compartment door outside garnish subassembly.
    14. Install the luggage compartment door lock cylinder assembly.
    15. Install the luggage compartment door cover.
  2. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE
    1. Apply protective tape around the No. 2 luggage compartment door name plate.

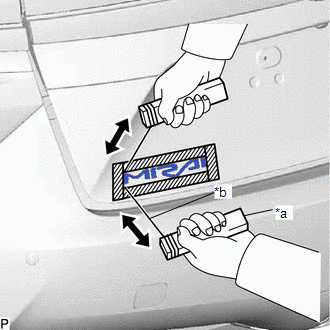

      GTY563275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      Protective Tape
    2. Using an infrared light, heat the No. 2 luggage compartment door name plate.

      Heating Temperature

      Item Temperature
      No. 2 Luggage Compartment Door Name Plate 40 to 60°C (104 to 140°F)
      3 to 5 minutes
      WARNING:
      GTY583277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Infrared Light
      • Do not touch the infrared light and heated parts.
      • Touching the infrared light may result in burns.
      • Touching heated parts for a long time may result in burns.
      1. Insert a piano wire between the vehicle body and No. 2 luggage compartment door name plate.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the No. 2 luggage compartment door name plate to the vehicle body.
      1. Remove the No. 2 luggage compartment door name plate.
    5. Remove the protective tape.
  3. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR NAME PLATE
    1. Apply protective tape around the No. 3 luggage compartment door name plate.

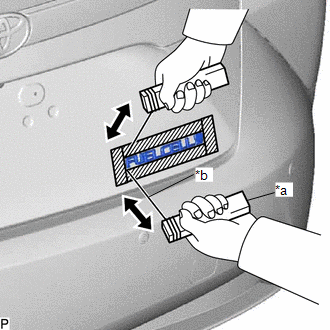

      GTY568456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      Protective Tape
    2. Using an infrared light, heat the No. 3 luggage compartment door name plate.

      Heating Temperature

      Item Temperature
      No. 3 Luggage Compartment Door Name Plate 40 to 60°C (104 to 140°F)
      3 to 5 minutes
      WARNING:
      GTY583282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Infrared Light
      • Do not touch the infrared light and heated parts.
      • Touching the infrared light may result in burns.
      • Touching heated parts for a long time may result in burns.
      1. Insert a piano wire between the vehicle body and No. 3 luggage compartment door name plate.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the No. 3 luggage compartment door name plate to the vehicle body.
      1. Remove the No. 3 luggage compartment door name plate.
    5. Remove the protective tape.
  4. REMOVE SIDE PANEL EMBLEM
    1. Apply protective tape around the side panel emblem.

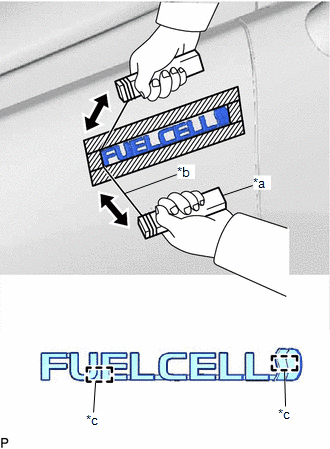

      GTY575733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      *c Location Pin
      Protective Tape
    2. Using an infrared light, heat the side panel emblem.

      Heating Temperature

      Item Temperature
      Side Panel Emblem 40 to 60°C (104 to 140°F)
      3 to 5 minutes
      WARNING:
      GTY583283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Infrared Light
      • Do not touch the infrared light and heated parts.
      • Touching the infrared light may result in burns.
      • Touching heated parts for a long time may result in burns.
      1. Insert a piano wire between the vehicle body and side panel emblem.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the side panel emblem to the vehicle body.
      NOTE:

      Be careful of the location pin positions.

      1. Remove the side panel emblem.
    5. Remove the protective tape.
