Name Plate
>>
Components [06/2015 - ]
Components [06/2015 - ]

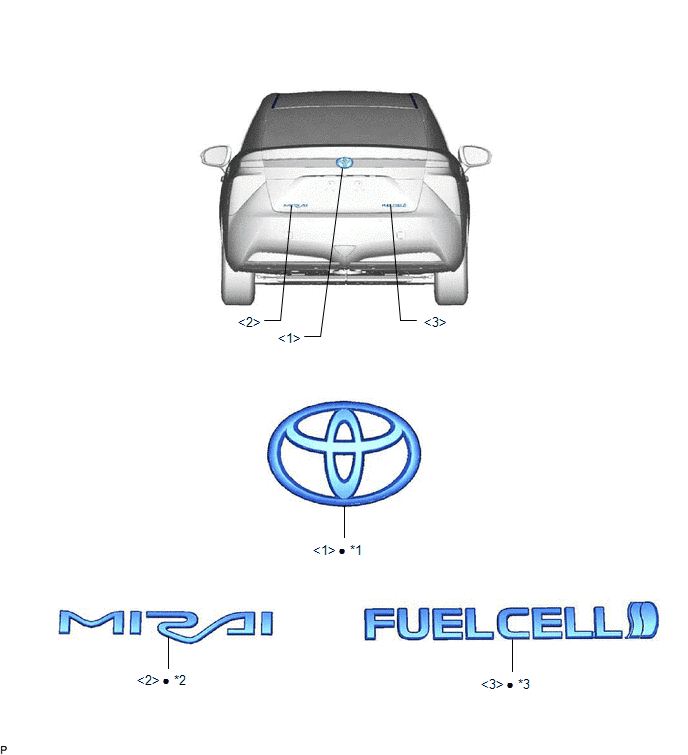

Fig 1: Name Plate Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
LUGGAGE COMPARTMENT DOOR EMBLEM
*2
NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE
*3
NO. 3 LUGGAGE COMPARTMENT DOOR NAME PLATE
-
-
•
Non-reusable part
-
-
Fig 2: Name Plate Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
SIDE PANEL EMBLEM
-
-
•
Non-reusable part
-
-
