Front Pillar Upper Cover
>>
Components [06/2015 - ]
Components [06/2015 - ]

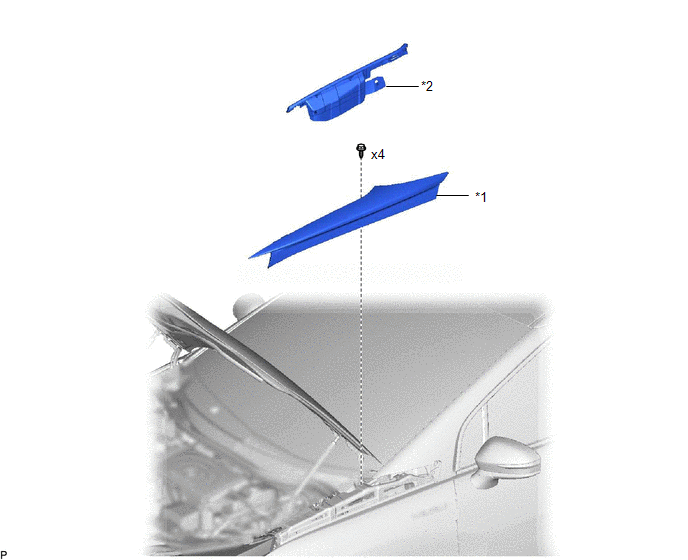

Fig 1: Front Pillar Upper Cover Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT FENDER TOP REINFORCEMENT SUB-ASSEMBLY
*2
FRONT PILLAR UPPER COVER SUB-ASSEMBLY
