Components [06/2015 - 11/2018]

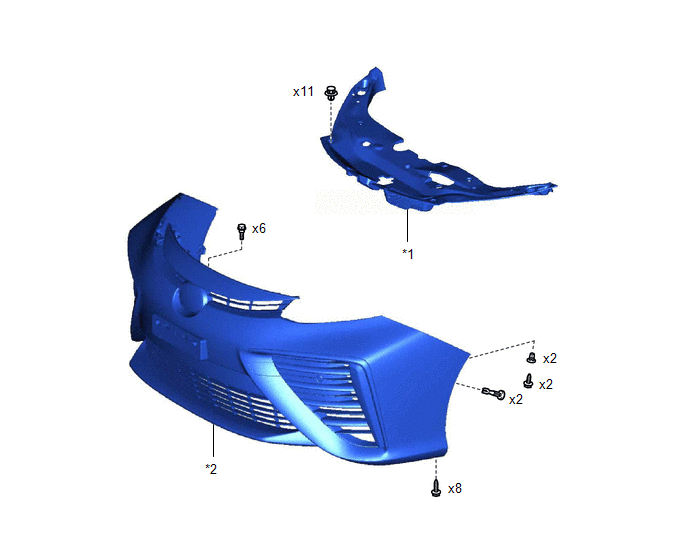

| *1 | COOL AIR INTAKE DUCT SEAL | *2 | FRONT BUMPER ASSEMBLY |

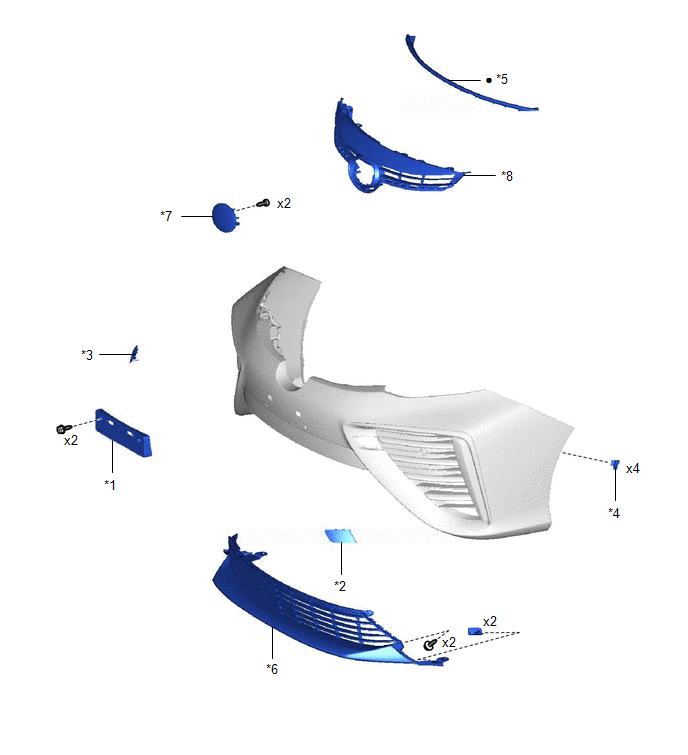

| *1 | FRONT BUMPER EXTENSION MOUNTING BRACKET | *2 | FRONT BUMPER HOLE COVER LH |
| *3 | FRONT BUMPER HOLE COVER RH | *4 | FRONT FENDER LINER RETAINER |
| *5 | HOOD TO RADIATOR GRILLE SEAL | *6 | LOWER RADIATOR GRILLE SUB-ASSEMBLY |
| *7 | RADIATOR GRILLE EMBLEM ASSEMBLY | *8 | RADIATOR GRILLE SUB-ASSEMBLY |
| • | Non-reusable part | - | - |

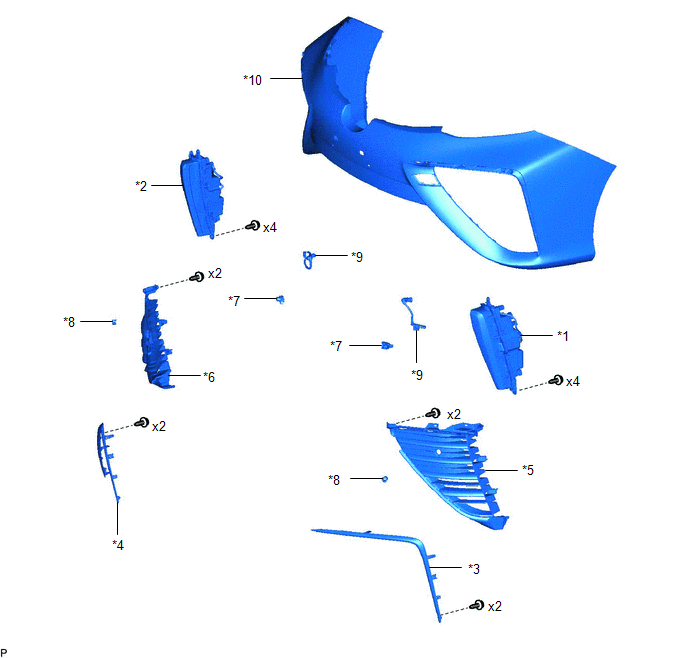

| *1 | CLEARANCE LIGHT ASSEMBLY LH | *2 | CLEARANCE LIGHT ASSEMBLY RH |
| *3 | FRONT BUMPER SIDE MOULDING LH | *4 | FRONT BUMPER SIDE MOULDING RH |
| *5 | LOWER RADIATOR SIDE GRILLE LH | *6 | LOWER RADIATOR SIDE GRILLE RH |
| *7 | NO. 1 ULTRASONIC SENSOR | *8 | NO. 1 ULTRASONIC SENSOR RETAINER |
| *9 | NO. 3 MOTOR COMPONENT WIRE | *10 | FRONT BUMPER COVER |

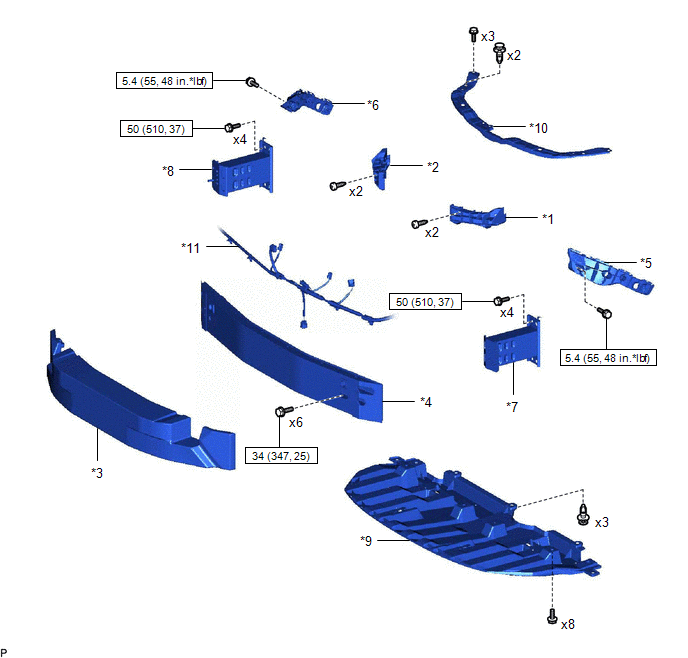

| Callout | Description | Callout | Description |
| *1 | FRONT BUMPER BRACKET LH | *2 | FRONT BUMPER BRACKET RH |
| *3 | FRONT BUMPER ENERGY ABSORBER | *4 | FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY |
| *5 | FRONT BUMPER SIDE SUPPORT LH | *6 | FRONT BUMPER SIDE SUPPORT RH |
| *7 | FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH | *8 | FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH |
| *9 | LOWER FRONT BUMPER ABSORBER | *10 | RADIATOR GRILLE BRACKET |
| *11 | MOTOR COMPARTMENT MAIN WIRE | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
