Components [06/2015 - ]

Fig 1: Black Out Tape (For Rear Side) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR DOOR CHECK ASSEMBLY	*2	REAR DOOR FRAME GARNISH
*3	REAR DOOR WEATHERSTRIP	*4	REAR DOOR WINDOW FRAME FRONT MOULDING
*5	REAR DOOR WINDOW FRAME REAR MOULDING	*6	REAR DOOR WINDOW FRAME UPPER MOULDING
*7	REAR SPEAKER ASSEMBLY	*8	RIVET
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	MP grease		Adhesive 1324
*	Precoated part	-	-

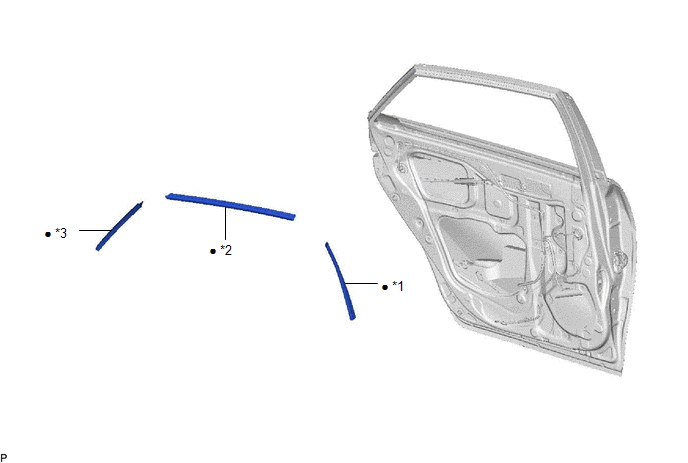

Fig 2: Black Out Tape (For Rear Side) Replacement Components (2 Of 2)

*1	REAR DOOR LOWER OUTSIDE STRIPE	*2	REAR DOOR OUTSIDE STRIPE
*3	REAR DOOR UPPER OUTSIDE STRIPE	-	-
•	Non-reusable part	-	-
