Components [06/2015 - ]
| Callout | Description | Callout | Description |
| *1 | LUGGAGE TRIM SERVICE HOLE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

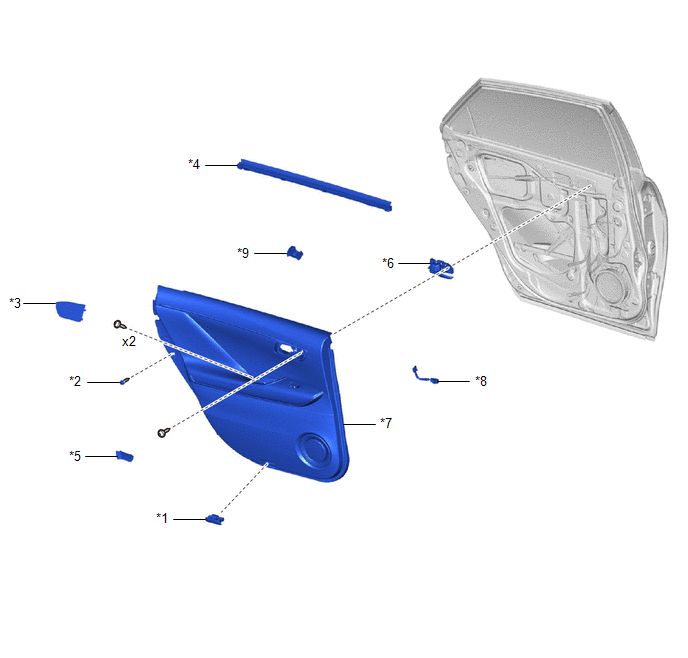

| *1 | COURTESY LIGHT ASSEMBLY | *2 | NO. 1 REAR DOOR STIFFENER CUSHION |
| *3 | REAR DOOR ARMREST COVER | *4 | REAR DOOR GLASS INNER WEATHERSTRIP |
| *5 | REAR DOOR INSIDE HANDLE BEZEL PLUG | *6 | REAR DOOR INSIDE HANDLE SUB-ASSEMBLY |
| *7 | REAR DOOR TRIM BOARD SUB-ASSEMBLY | *8 | REAR DOOR WIRE |
| *9 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY | - | - |

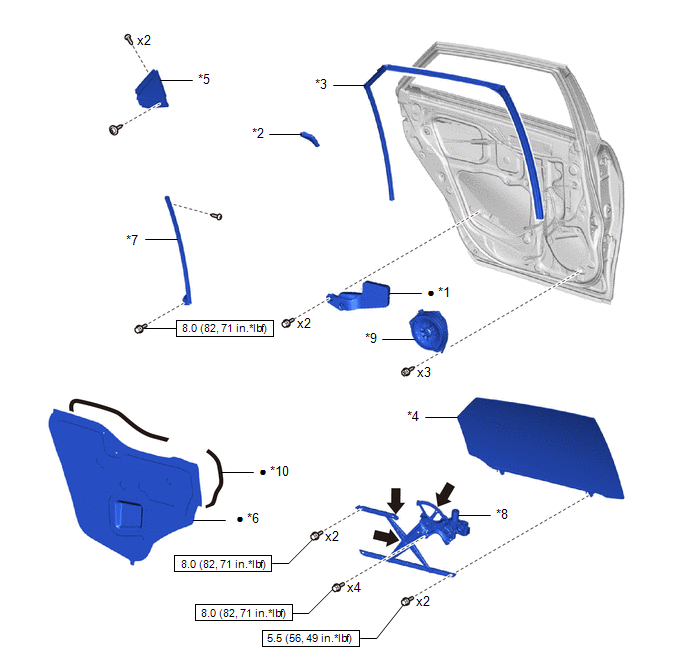

| Callout | Description | Callout | Description |
| *1 | REAR DOOR CUSHION | *2 | REAR DOOR FRAME GARNISH |
| *3 | REAR DOOR GLASS RUN | *4 | REAR DOOR GLASS SUB-ASSEMBLY |
| *5 | REAR DOOR REAR GUIDE SEAL | *6 | REAR DOOR SERVICE HOLE COVER |
| *7 | REAR DOOR WINDOW REAR LOWER FRAME SUB-ASSEMBLY | *8 | REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY |
| *9 | REAR SPEAKER ASSEMBLY | *10 | BUTYL TAPE |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

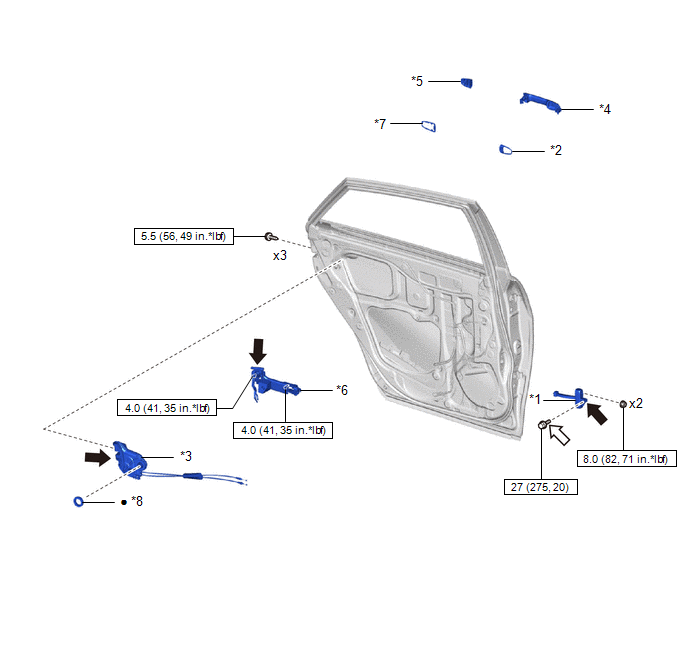

| Callout | Description | Callout | Description |
| *1 | REAR DOOR CHECK ASSEMBLY | *2 | REAR DOOR FRONT OUTSIDE HANDLE PAD |
| *3 | REAR DOOR LOCK ASSEMBLY | *4 | REAR DOOR OUTSIDE HANDLE ASSEMBLY |
| *5 | REAR DOOR OUTSIDE HANDLE COVER | *6 | REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY |
| *7 | REAR DOOR REAR OUTSIDE HANDLE PAD | *8 | DOOR LOCK WIRING HARNESS SEAL |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | Adhesive 1324 | ||
| * | Precoated part | - | - |

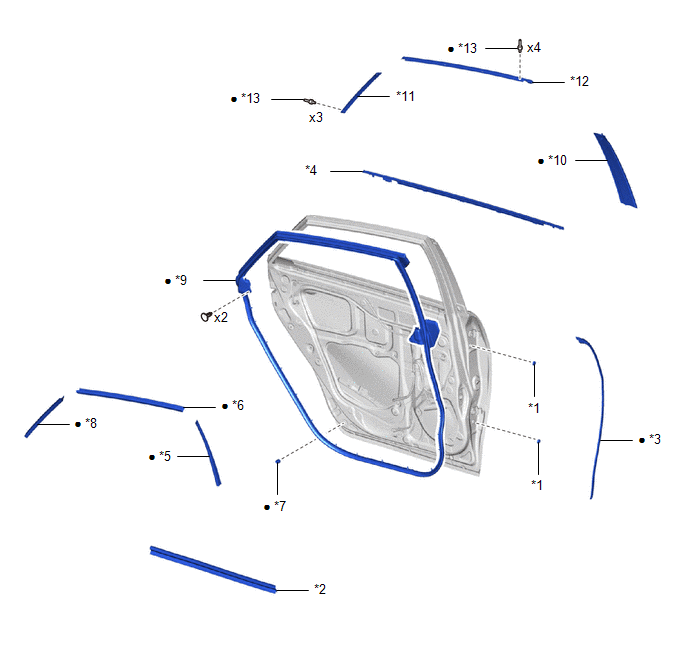

| *1 | HOLE PLUG | *2 | NO. 2 REAR DOOR WEATHERSTRIP |
| *3 | NO. 3 REAR DOOR WEATHERSTRIP | *4 | REAR DOOR BELT MOULDING ASSEMBLY |
| *5 | REAR DOOR LOWER OUTSIDE STRIPE | *6 | REAR DOOR OUTSIDE STRIPE |
| *7 | REAR DOOR PANEL CUSHION | *8 | REAR DOOR UPPER OUTSIDE STRIPE |
| *9 | REAR DOOR WEATHERSTRIP | *10 | REAR DOOR WINDOW FRAME FRONT MOULDING |
| *11 | REAR DOOR WINDOW FRAME REAR MOULDING | *12 | REAR DOOR WINDOW FRAME UPPER MOULDING |
| *13 | RIVET | - | - |
| • | Non-reusable part | - | - |
