Removal [06/2015 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [06/2015 - ]

  2. REMOVE LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY

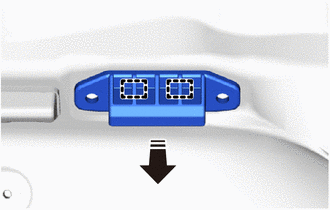

    1. Disengage the guides to separate the luggage compartment door opening switch assembly as shown in the illustration.
      GTY563152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

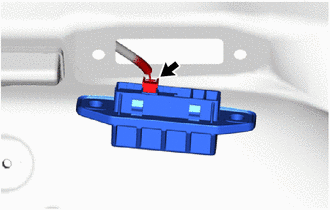

    2. Disconnect the connector to remove the luggage compartment door opening switch assembly.
      GTY561621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
