Components [06/2015 - ]

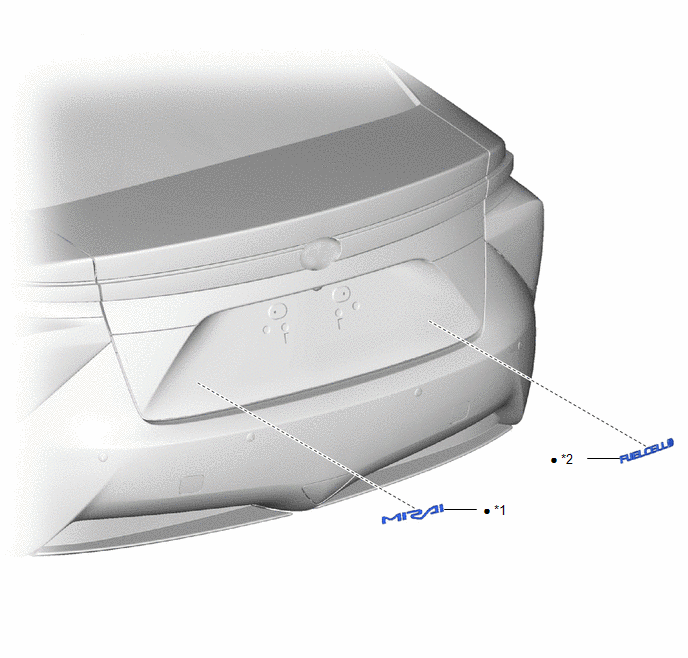

Fig 1: Luggage Compartment Door Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE	*2	NO. 3 LUGGAGE COMPARTMENT DOOR PLATE
•	Non-reusable part	-	-

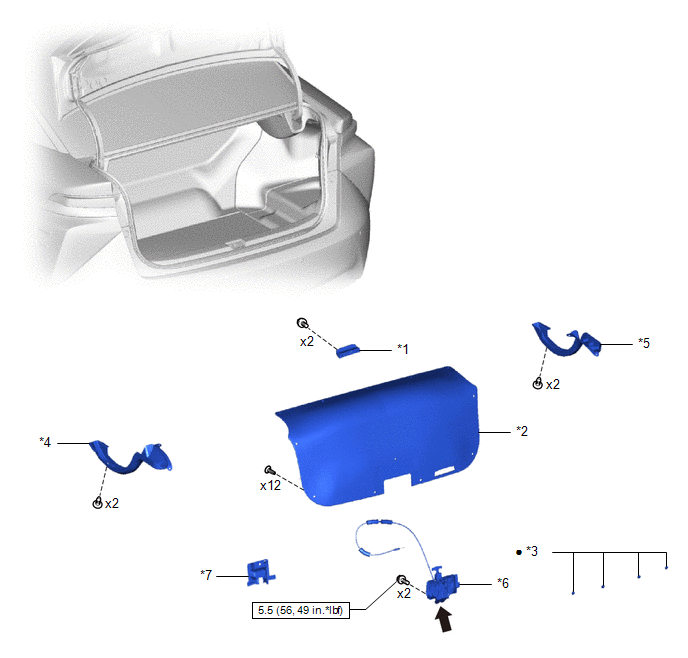

Fig 2: Luggage Compartment Door Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LUGGAGE COMPARTMENT DOOR ASSIST GRIP	*2	LUGGAGE COMPARTMENT DOOR COVER
*3	LUGGAGE COMPARTMENT DOOR CUSHION	*4	LUGGAGE COMPARTMENT DOOR HINGE COVER LH
*5	LUGGAGE COMPARTMENT DOOR HINGE COVER RH	*6	LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
*7	LUGGAGE DOOR LOCK PROTECTOR	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

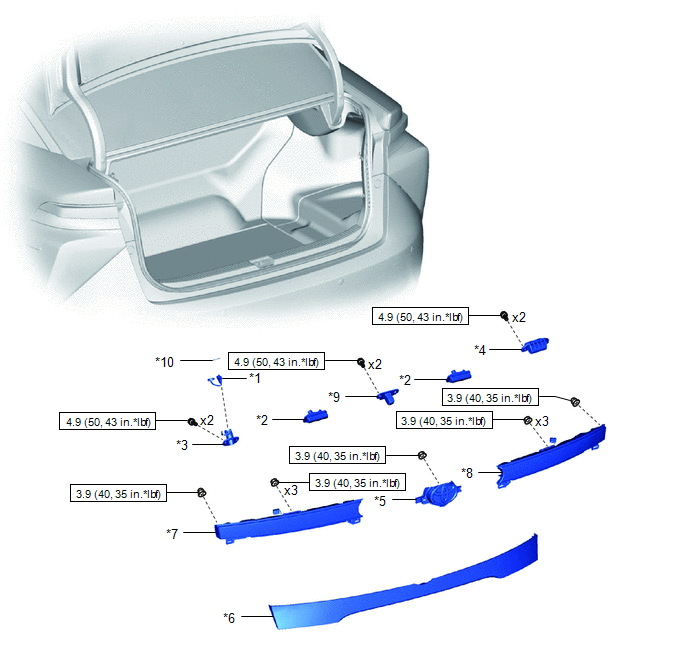

Fig 3: Luggage Compartment Door Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	DOOR UNLOCK SWITCH SUB-ASSEMBLY	*2	LICENSE PLATE LIGHT ASSEMBLY
*3	LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY	*4	LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY
*5	LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH	*6	LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
*7	REAR LIGHT ASSEMBLY LH	*8	REAR LIGHT ASSEMBLY RH
*9	REAR TELEVISION CAMERA ASSEMBLY	*10	C RING
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
