Components [06/2015 - ]

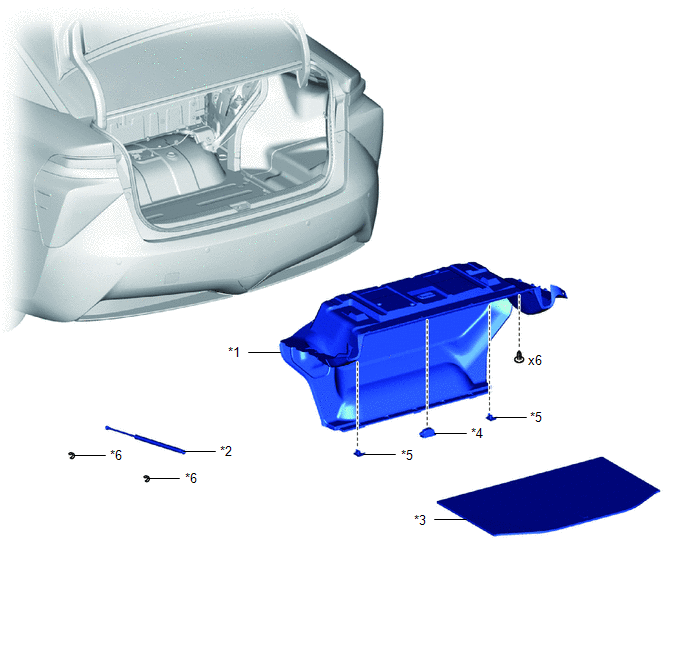

Fig 1: Luggage Compartment Door Support Replacement Components
GTY564219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT LUGGAGE COMPARTMENT TRIM COVER *2 LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY
*3 LUGGAGE COMPARTMENT FLOOR MAT *4 NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
*5 NO. 2 LUGGAGE COMPARTMENT TRIM HOOK *6 STOP RING
