Removal [06/2015 - ]: Procedure

  1. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY
    1. Disconnect the connector.

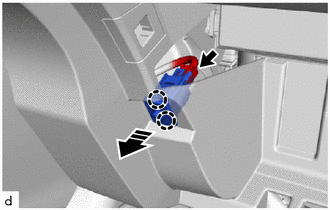

      GTY603133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the claws to remove the luggage door opening cancel switch assembly as shown in the illustration.
