On-Vehicle Inspection [06/2015 - ]: Procedure

  1. INSPECT HOOD SUB-ASSEMBLY

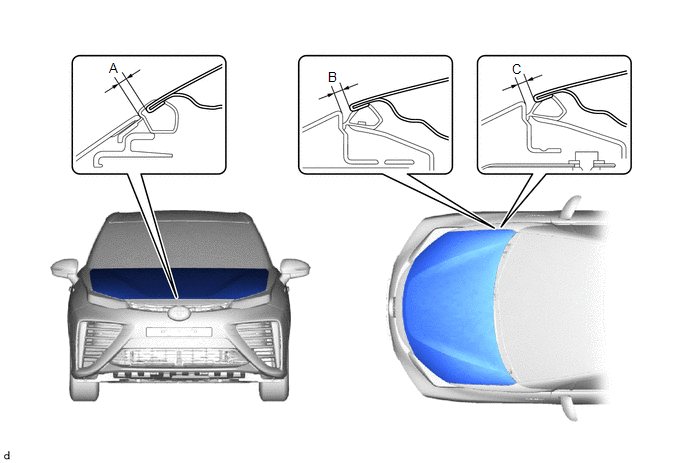

    1. Check that the clearance measurements of areas "a" though "f" are within each standard range.
      GTY591693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Clearance

      Area Measurement Area Measurement
      A 2.1 to 5.1 mm (0.083 to 0.201 in.) B 2.5 to 5.5 mm (0.098 to 0.217 in.)
      C 2.5 to 5.5 mm (0.098 to 0.217 in.) - -
