Components [06/2015 - ]

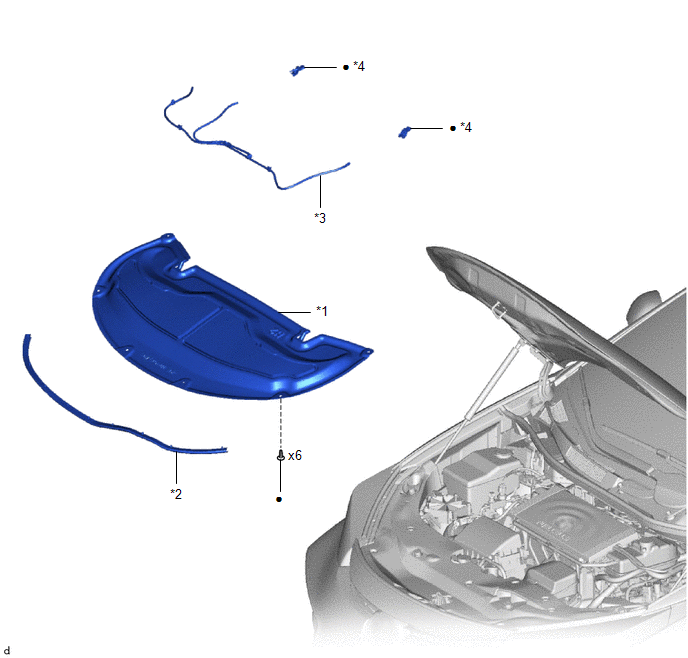

Fig 1: Hood Replacement Components
GTY569828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HOOD INSULATOR *2 HOOD TO RADIATOR SUPPORT SEAL
*3 WASHER HOSE *4 WASHER NOZZLE SUB-ASSEMBLY
• Non-reusable part - -
