Removal [06/2015 - ]: Procedure

  1. REMOVE HOOD SUPPORT ASSEMBLY
    WARNING:
    • Do not perform work if the vehicle hood is not securely supported.
      GTY564228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • The hood could fall, resulting in injury.
    NOTE:
    • Avoid touching the piston rod as much as possible to prevent foreign matter from attaching to it. Be sure to hold the cylinder while servicing.
    • Do not wear cotton gloves or other similar materials when handling the piston rod. Fibers may attach to the rod and result in gas leaks.
    • Do not push sideways on the cylinder because the rod may bend.
    1. Using a thin-bladed screwdriver with its tip wrapped in protective tape, remove the 2 stop rings along their grooves.

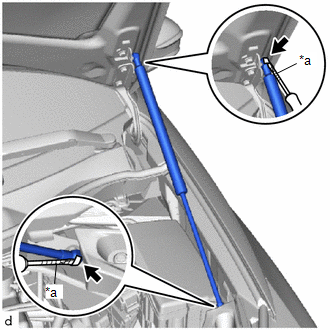

      GTY578986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Tape the thin-bladed screwdriver tip before use.

    2. Disengage the 2 ball joints to remove the hood support assembly.
      NOTE:

      Remove the hood support assembly while holding the hood by hand.

  2. REMOVE HOOD STAY BRACKET
    1. Remove the bolt.

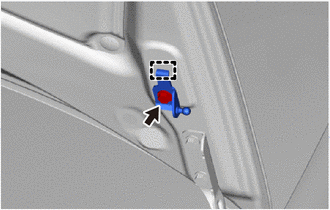

      GTY561915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the hood stay bracket.
