Components [06/2015 - ]

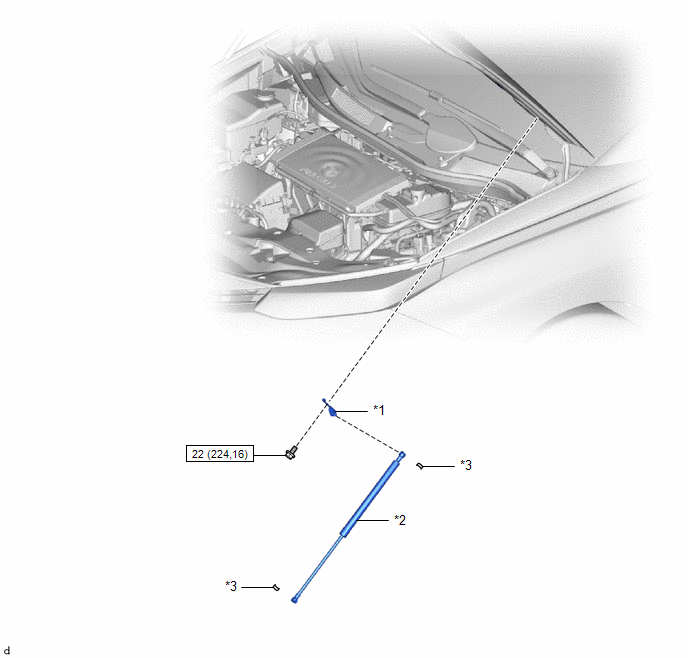

Fig 1: Hood Support Replacement Components With Torque Specifications
GTY552832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HOOD STAY BRACKET *2 HOOD SUPPORT ASSEMBLY
*3 STOP RING - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
