Reassembly [06/2015 - ]: Procedure

  1. INSTALL FUEL FILLER OPENING LID ASSEMBLY
    1. Engage the guides and claw to install the fuel filler opening lid assembly as shown in the illustration.

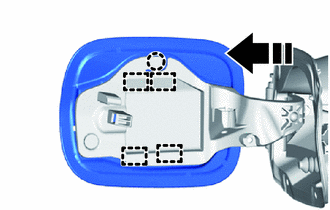

      GTY572395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL PUSH START SWITCH BRACKET
    1. Engage the claws to install the push start switch bracket as shown in the illustration.

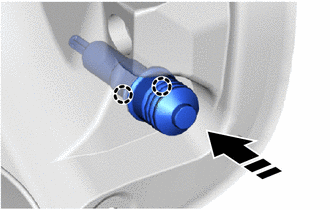

      GTY558917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL FUEL FILLER OPENING LID SWITCH SUB-ASSEMBLY
    1. Engage the guides to install the fuel filler opening lid switch sub-assembly.

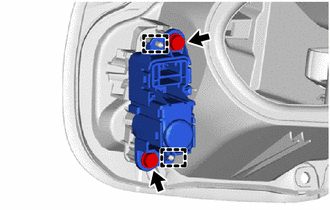

      GTY541073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.
