Inspection [06/2015 - ]: Procedure

  1. INSPECT FUEL FILLER OPENING LID LOCK SUB-ASSEMBLY

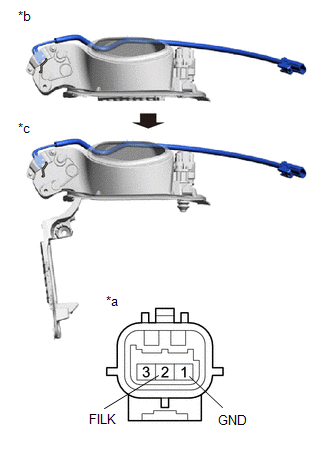

    1. Check the resistance.
      GTY541902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Fuel Filler Opening Lid Lock Sub-assembly)
      *b Switch on
      *c Switch off
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        1 (GND) - 2 (FILK) Fuel filler opening lid closed
        (Switch on)        		 Below 1 Ω
        Fuel filler opening lid opened
        (Switch off)        		 10 kΩ or higher
        1. If the result is not as specified, replace the fuel filler opening lid lock sub-assembly.
  2. INSPECT FUEL FILLER OPENING LID SWITCH SUB-ASSEMBLY
    1. Check the resistance.
      GTY550189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Fuel Filler Opening Lid Switch Sub-assembly)
      *b Switch on
      *c Switch off
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        1 (FIL2) - 5 (GND2) Switch off (Not pressed) 10 kΩ or higher
        Switch on (Pressed) Below 1 Ω
        1. If the result is not as specified, replace the filler opening lid lock sub-assembly.
