Disassembly [06/2015 - ]: Procedure

  1. REMOVE FUEL FILLER OPENING LID SWITCH SUB-ASSEMBLY
    1. Remove the 2 screws.
      GTY541073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guides to remove the fuel filler opening lid switch sub-assembly.
  2. REMOVE PUSH START SWITCH BRACKET

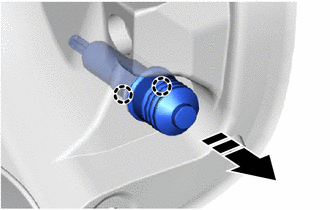

    1. Disengage the claws to remove the push start switch bracket as shown in the illustration.
      GTY551312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE FUEL FILLER OPENING LID ASSEMBLY

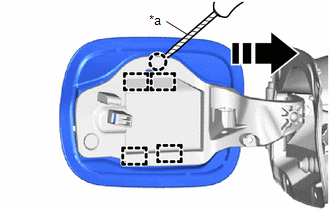

    1. Using a thin-bladed screwdriver with its tip wrapped in protective tape, disengage the claw and guides to remove the fuel filler opening lid assembly.
      GTY564313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
