Components [06/2015 - ]

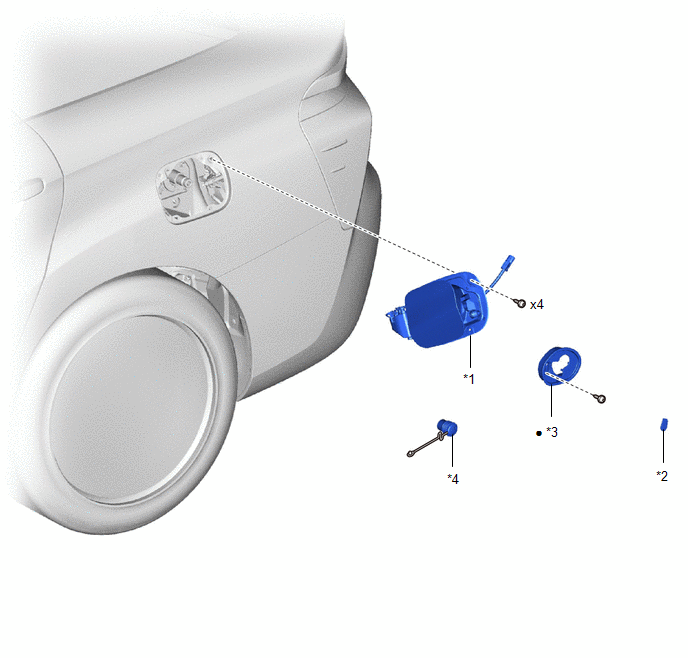

Fig 1: Fuel Lid Opener Unit Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL FILLER OPENING LID SUB-ASSEMBLY	*2	FUEL TANK CAP COVER
*3	FUEL TANK FILLER PIPE SHIELD	*4	HYDROGEN INLET RECEPTACLE CAP
•	Non-reusable part	-	-

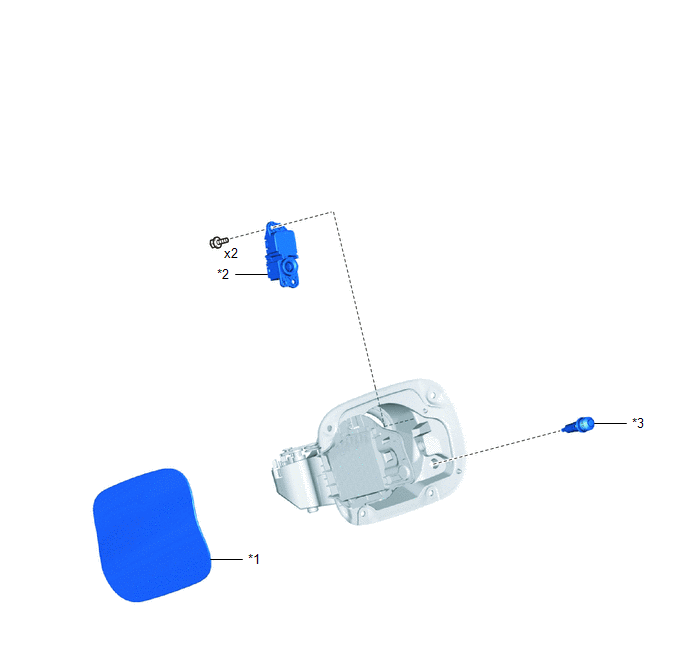

Fig 2: Fuel Lid Opener Unit Replacement Components (2 Of 2)

*1	FUEL FILLER OPENING LID ASSEMBLY	*2	FUEL FILLER OPENING LID SWITCH SUB-ASSEMBLY
*3	PUSH START SWITCH BRACKET	-	-
