Removal [06/2015 - ]: Procedure

  1. CUSTOMIZE SWITCH

    Refer to CUSTOMIZE PARAMETERS [06/2015 - ]

  2. REMOVE LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 5 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 5 [11/2018 - ]

  3. REMOVE UPPER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 6 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 6 [11/2018 - ]

  4. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 5 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 5 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 5 [11/2018 - ]

  5. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 7 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 7 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 7 [11/2018 - ]

  6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 17 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 17 [11/2018 - ]

  7. SEPARATE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 20 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 20 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 20 [11/2018 - ]

  9. REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 19 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 19 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 19 [11/2018 - ]

  10. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 24 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 24 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 24 [11/2018 - ]

  11. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 13 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 13 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 13 [11/2018 - ]

  12. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 25 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 25 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 25 [11/2018 - ]

  13. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 26 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 26 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 26 [11/2018 - ]

  14. REMOVE LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY

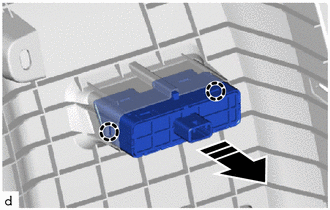

    1. Disengage the claws to remove the luggage compartment door opening switch assembly as shown in the illustration.
      GTY584576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
