Components [06/2015 - ]

Fig 1: Fuel Lid Opener Switch Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LUGGAGE TRIM SERVICE HOLE COVER	*2	NEGATIVE AUXILIARY BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" :Nm (kgfcm, ft.*lbf)	-	-

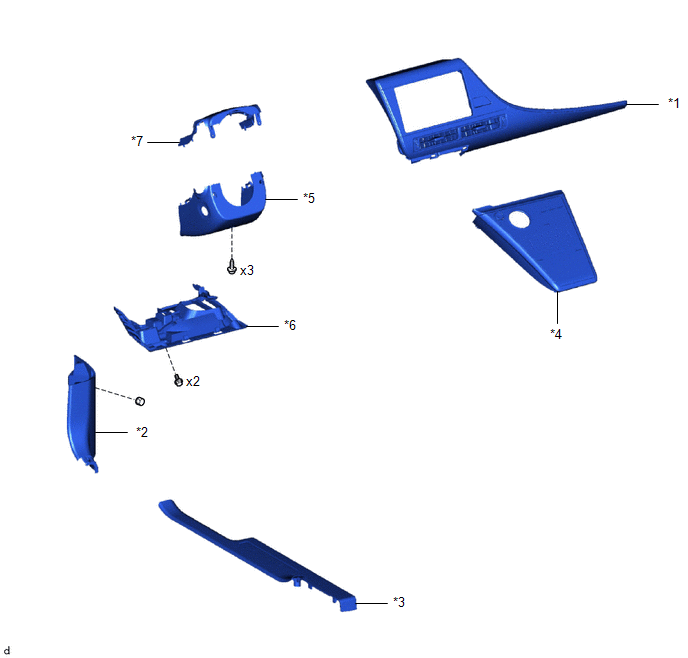

Fig 2: Fuel Lid Opener Switch Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER INSTRUMENT PANEL REGISTER ASSEMBLY	*2	COWL SIDE TRIM BOARD LH
*3	FRONT DOOR SCUFF PLATE LH	*4	INTEGRATION CONTROL AND PANEL ASSEMBLY
*5	LOWER STEERING COLUMN COVER	*6	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*7	UPPER STEERING COLUMN COVER	-	-

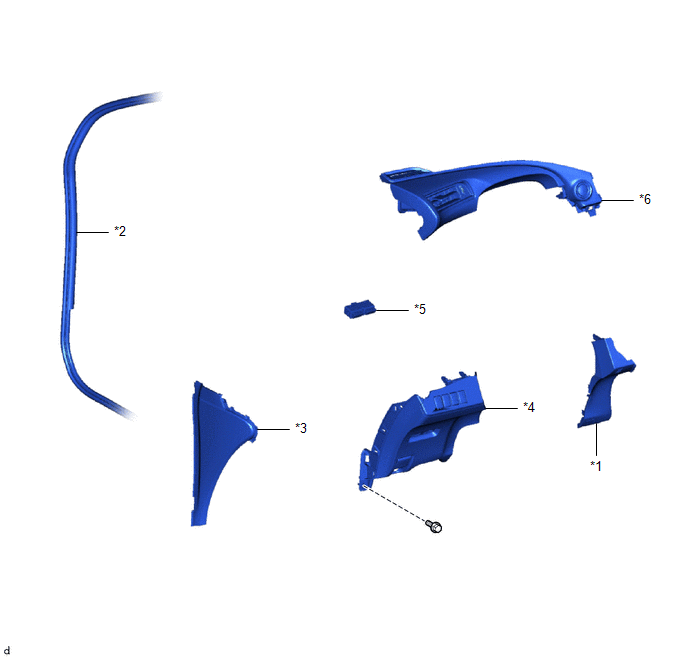

Fig 3: Fuel Lid Opener Switch Replacement Components (3 Of 3)

*1	CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL	*2	FRONT DOOR OPENING TRIM WEATHERSTRIP LH
*3	INSTRUMENT SIDE PANEL LH	*4	LOWER INSTRUMENT PANEL FINISH PANEL
*5	LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY	*6	NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
