Adjustment [06/2015 - ]: Procedure
- INSPECT FRONT DOOR PANEL SUB-ASSEMBLY

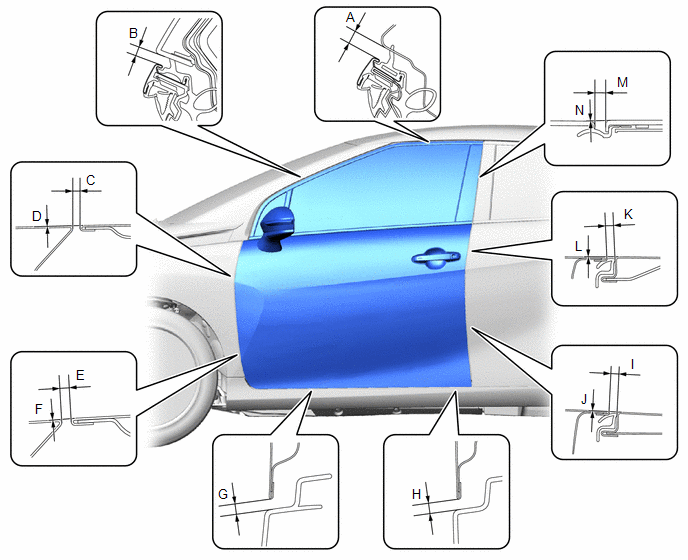

- Check that the clearance measurements of areas "A" through "N" are within each standard range.
Standard Clearance
Area Measurement Area Measurement A 3.5 to 6.5 mm (0.138 to 0.256 in.) B 3.5 to 6.5 mm (0.138 to 0.256 in.) C 2.3 to 5.3 mm (0.091 to 0.209 in.) D -1.5 to 1.5 mm (-0.059 to 0.059 in.) E 2.3 to 5.3 mm (0.091 to 0.209 in.) F -1.5 to 1.5 mm (-0.059 to 0.059 in.) G 3.8 to 5.8 mm (0.150 to 0.228 in.) H 3.8 to 5.8 mm (0.150 to 0.228 in.) I 2.6 to 5.6 mm (0.102 to 0.220 in.) J -1.5 to 1.5 mm (-0.059 to 0.059 in.) K 2.6 to 5.6 mm (0.102 to 0.220 in.) L -1.5 to 1.5 mm (-0.059 to 0.059 in.) M 2.8 to 5.8 mm (0.110 to 0.228 in.) N -1.5 to 1.5 mm (-0.059 to 0.059 in.)
- Check that the clearance measurements of areas "A" through "N" are within each standard range.

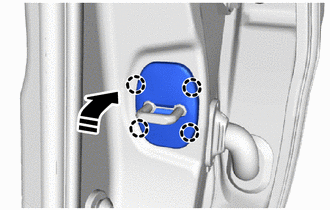

- REMOVE FRONT DOOR LOCK STRIKER COVER
- ADJUST FRONT DOOR PANEL SUB-ASSEMBLY

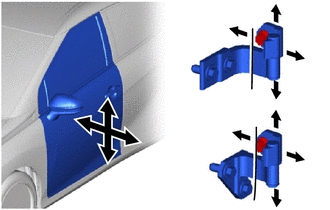

Using SST, adjust the door horizontally and vertically by loosening the 4 body side hinge bolts.
- SST: 09812-00010
- Tighten the 4 body side hinge bolts after the adjustment.
Torque: 32.5 N*m (331 kgf*cm, 24 ft.*lbf)

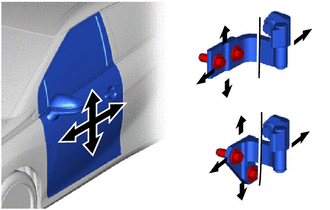

- Adjust the door horizontally and vertically by loosening the 2 door side hinge bolts.
- Tighten the 2 door side hinge bolts after the adjustment.
Torque: 32.5 N*m (331 kgf*cm, 24 ft.*lbf)

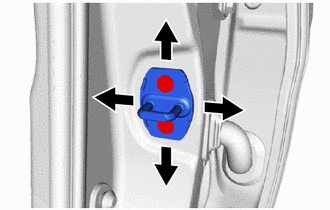

- Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.
- Using a brass bar and a hammer, hit the striker to adjust its position.
- Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

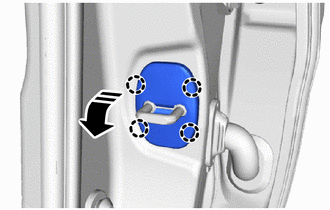

- INSTALL FRONT DOOR LOCK STRIKER COVER
