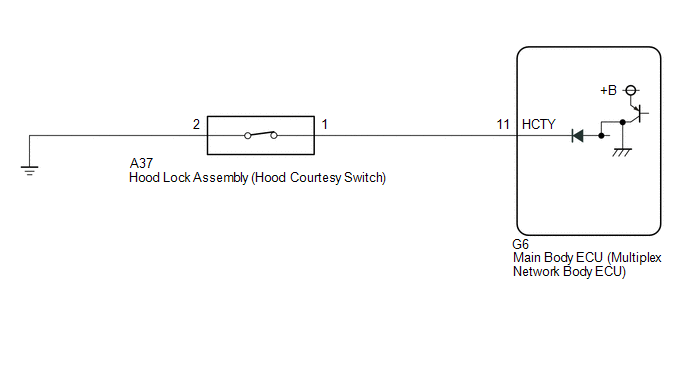

While Alarm is Armed, Luggage Door or Hood is opened but Alarm does not Sound [06/2015 - ]: Wiring Diagram

GTY568055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
