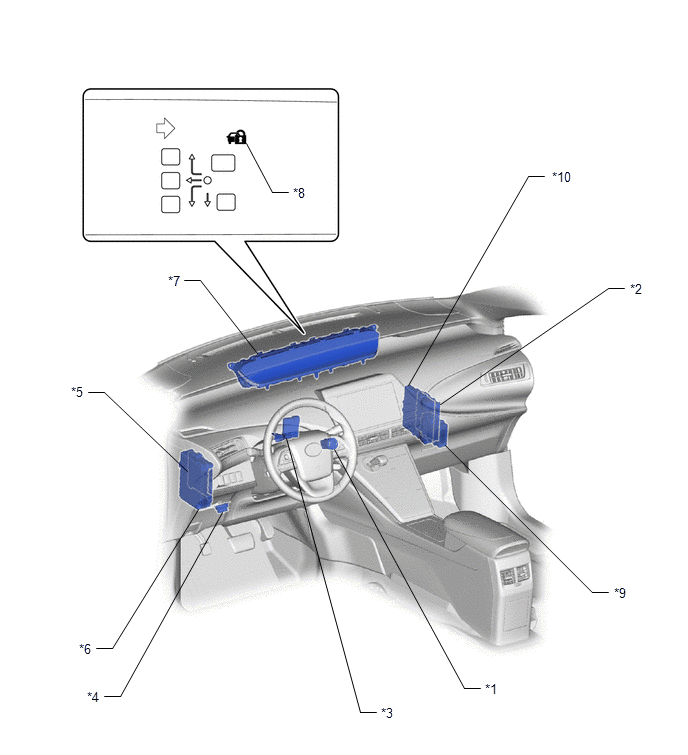

Parts Location [06/2015 - ]: Illustration
| *1 | POWER SWITCH | *2 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *3 | ID CODE BOX (IMMOBILISER CODE ECU) | *4 | DLC3 |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - AM2 FUSE - FDC FUSE - ECU-B NO. 3 FUSE - P COM-MAIN FUSE |
| *7 | COMBINATION METER ASSEMBLY | *8 | SECURITY INDICATOR LIGHT |
| *9 | TRANSMISSION CONTROL ECU ASSEMBLY | *10 | EV CONTROL ECU |
