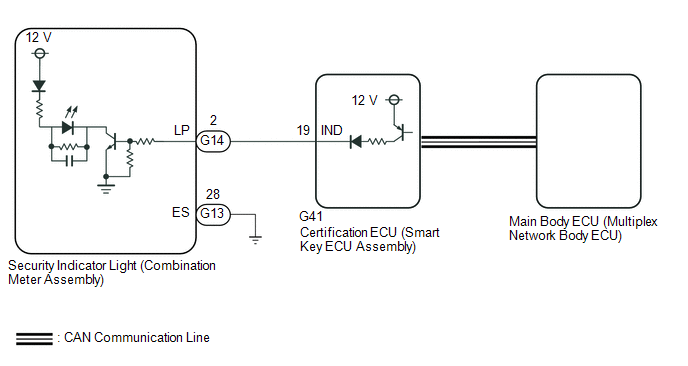

Security Indicator Light Does not Blink [06/2015 - ]: Wiring Diagram

GTY547520

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
