Parts Location [06/2015 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

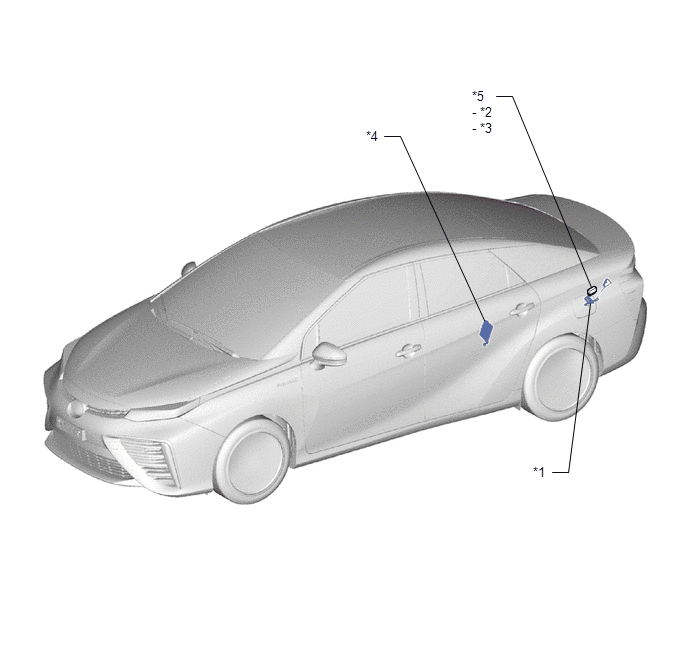

*1	FUEL LID LOCK WITH MOTOR ASSEMBLY	*2	NO. 1 FUEL LID OPENER RELAY
*3	NO. 2 FUEL LID OPENER RELAY	*4	HYDROGEN FUEL CONTROL ECU ASSEMBLY
*5	NO. 5 RELAY BLOCK	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

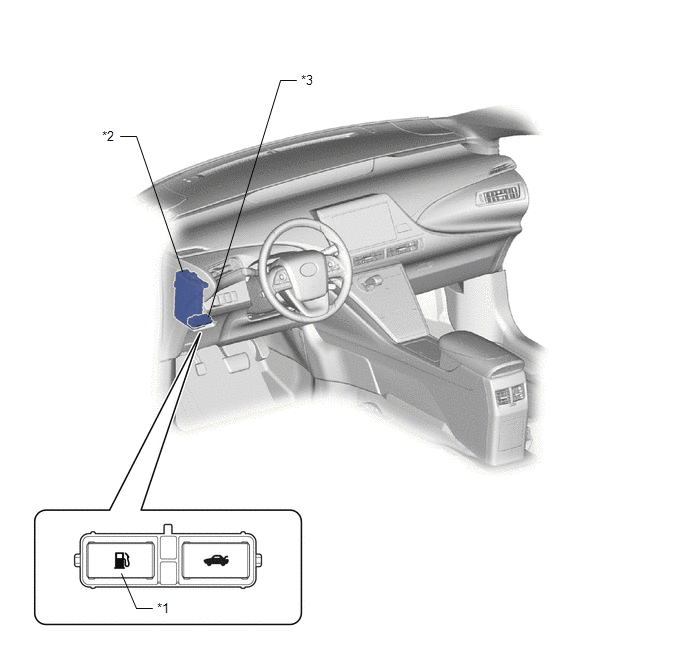

*1	FUEL LID OPENER SWITCH	*2	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - FUEL OPN FUSE
*3	LUGGAGE DOOR OPENING SWITCH ASSEMBLY	-	-
