Parts Location [06/2015 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

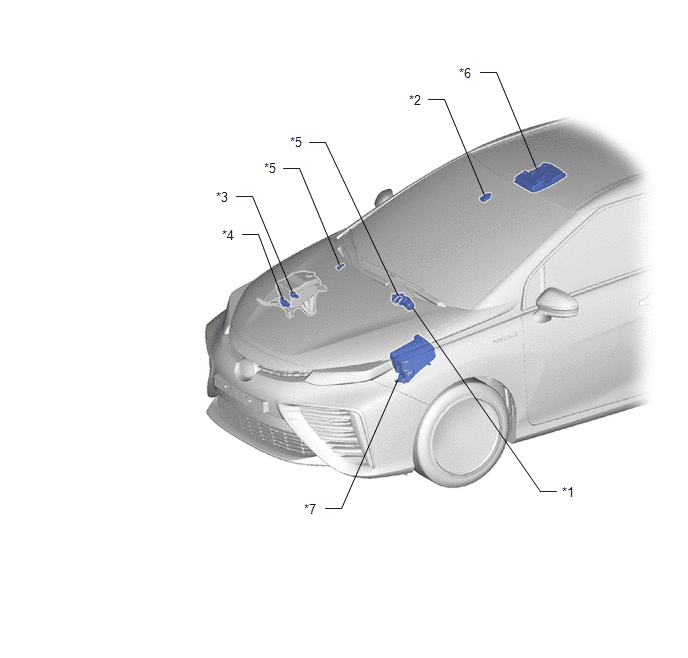

*1	WINDSHIELD WIPER MOTOR ASSEMBLY	*2	RAIN SENSOR
*3	LEVEL WARNING SWITCH ASSEMBLY	*4	WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
*5	WASHER NOZZLE SUB-ASSEMBLY	*6	MAP LIGHT ASSEMBLY
*7	MOTOR COMPARTMENT RELAY BLOCK - WIPER FUSE - WASHER FUSE	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

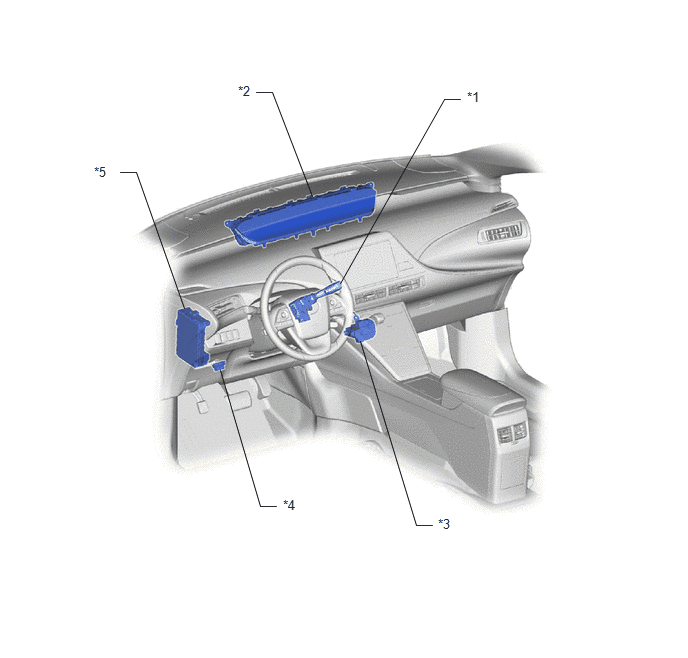

*1	WINDSHIELD WIPER SWITCH ASSEMBLY	*2	COMBINATION METER ASSEMBLY
*3	WINDSHIELD WIPER RELAY ASSEMBLY	*4	DLC3
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE	-	-
