POWER WINDOW SWITCH (for Rear Side)
>>
Components [06/2015 - ]
Components [06/2015 - ]

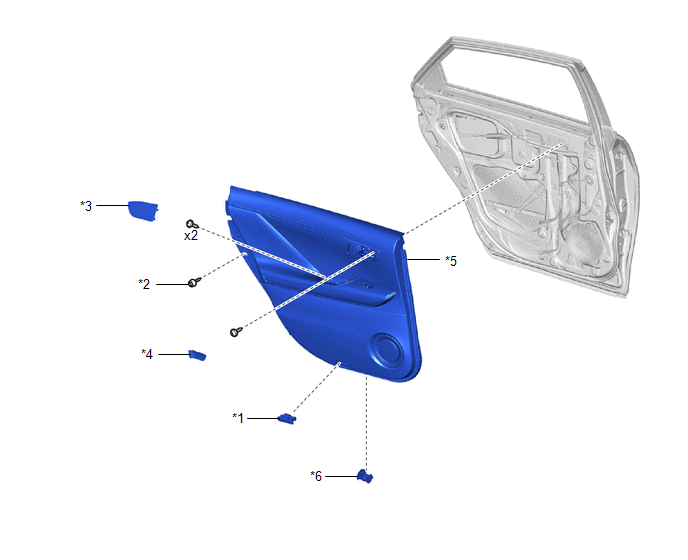

Fig 1: Power Window Switch (For Rear Side) Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
COURTESY LIGHT ASSEMBLY
*2
NO. 1 REAR DOOR STIFFENER CUSHION
*3
REAR DOOR ARMREST COVER
*4
REAR DOOR INSIDE HANDLE BEZEL PLUG
*5
REAR DOOR TRIM BOARD SUB-ASSEMBLY
*6
REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
