Components [06/2015 - ]

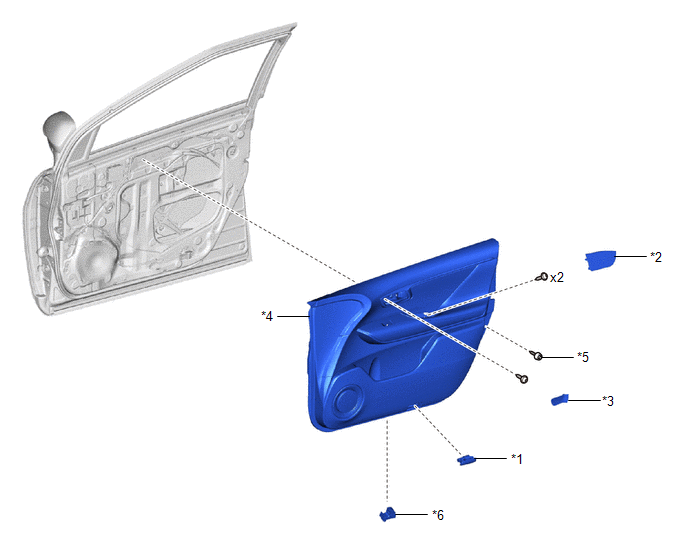

Fig 1: Power Window Switch (For Front Side) Replacement Components
GTY560148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COURTESY LIGHT ASSEMBLY *2 FRONT DOOR ARMREST COVER RH
*3 FRONT DOOR INSIDE HANDLE BEZEL PLUG RH *4 FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH
*5 NO. 1 FRONT DOOR STIFFENER CUSHION *6 POWER WINDOW REGULATOR SWITCH ASSEMBLY
