Components [06/2015 - ]

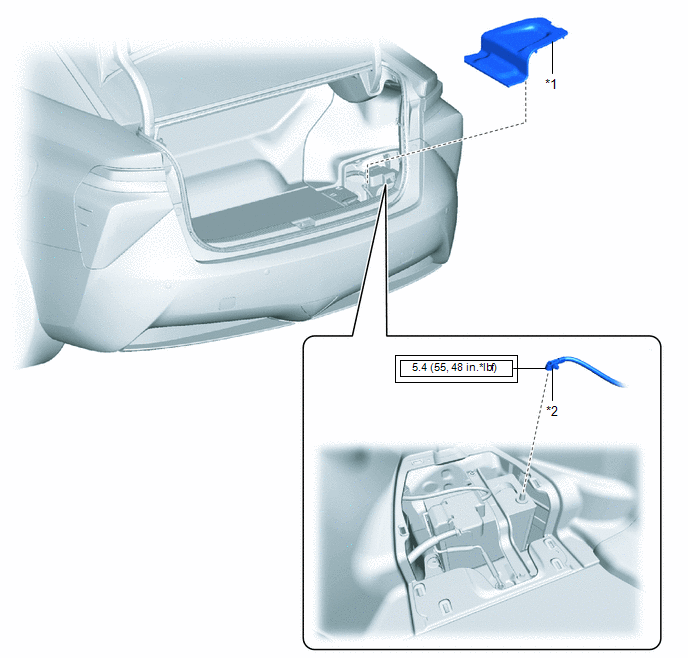

Fig 1: Power Window Regulator Motor (For Front Side) Replacement Components With Torque Specifications (1 Of 3)
| Callout | Description | Callout | Description |
| *1 | LUGGAGE TRIM SERVICE HOLE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

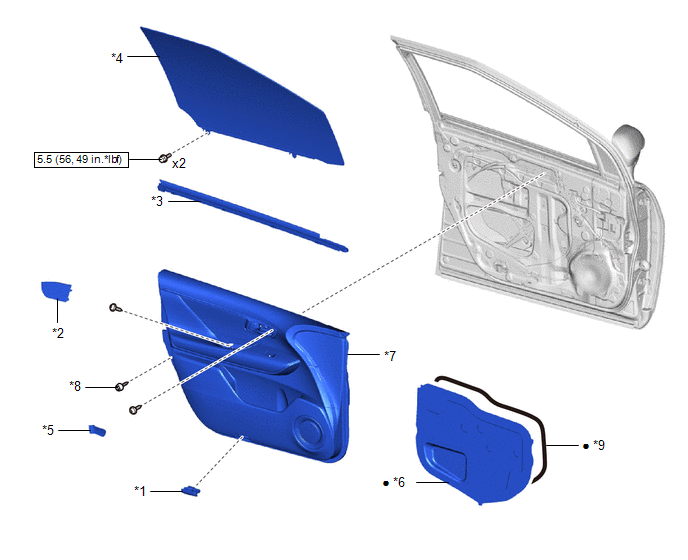

Fig 2: Power Window Regulator Motor (For Front Side) Replacement Components With Torque Specifications (2 Of 3)
| Callout | Description | Callout | Description |
| *1 | COURTESY LIGHT ASSEMBLY | *2 | FRONT DOOR ARMREST COVER |
| *3 | FRONT DOOR GLASS INNER WEATHERSTRIP | *4 | FRONT DOOR GLASS SUB-ASSEMBLY |
| *5 | FRONT DOOR INSIDE HANDLE BEZEL PLUG | *6 | FRONT DOOR SERVICE HOLE COVER |
| *7 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY | *8 | NO. 1 FRONT DOOR STIFFENER CUSHION |
| *9 | BUTYL TAPE | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

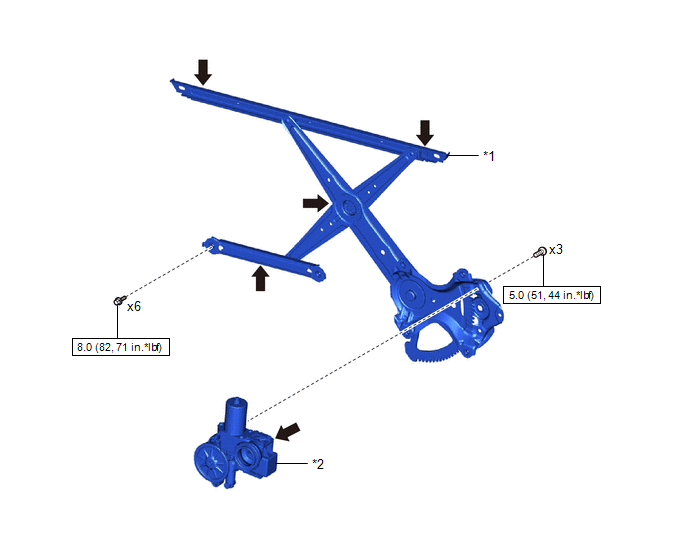

Fig 3: Power Window Regulator Motor (For Front Side) Replacement Components With Torque Specifications (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY | *2 | POWER WINDOW REGULATOR MOTOR ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | MP grease |
