SEAT CUSHION HEATER (for Front Side)
>>
Components [06/2015 - ]
Components [06/2015 - ]

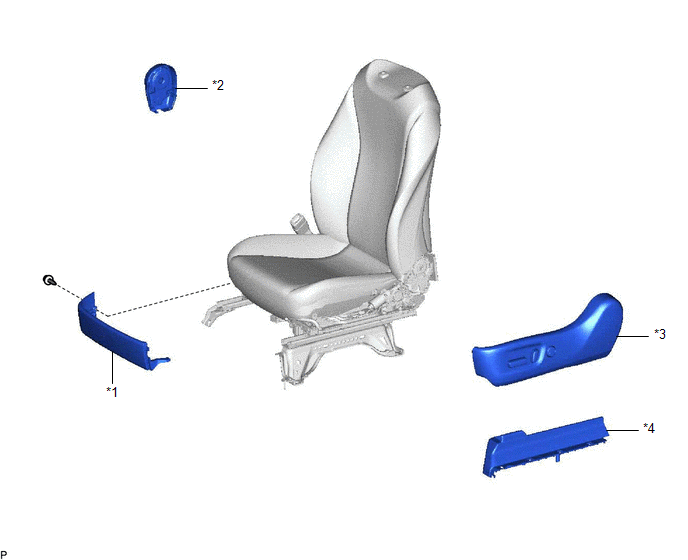

Fig 1: Seat Cushion Heater (For Front Side) Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT INNER NO. 1 SEAT CUSHION SHIELD
*2
FRONT INNER SEAT CUSHION SHIELD
*3
FRONT SEAT CUSHION SHIELD
*4
FRONT SEAT LEG COVER

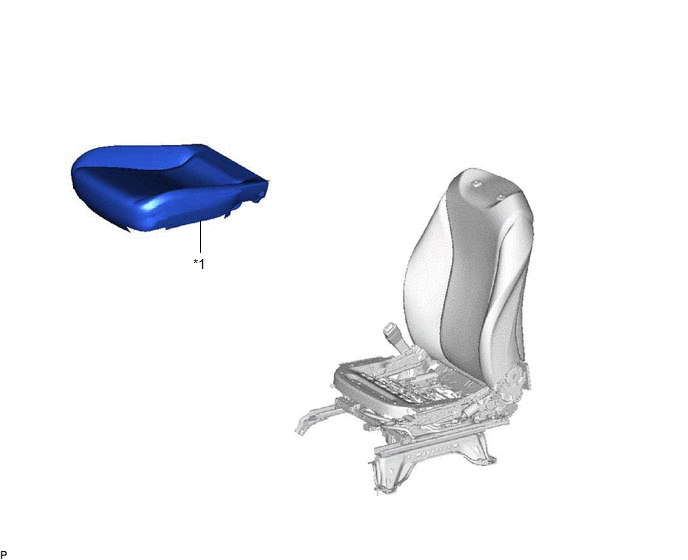

Fig 2: Seat Cushion Heater (For Front Side) Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT SEAT CUSHION HEATER (FRONT SEAT CUSHION WITH COVER PAD)
-
-
