Components [06/2015 - ]

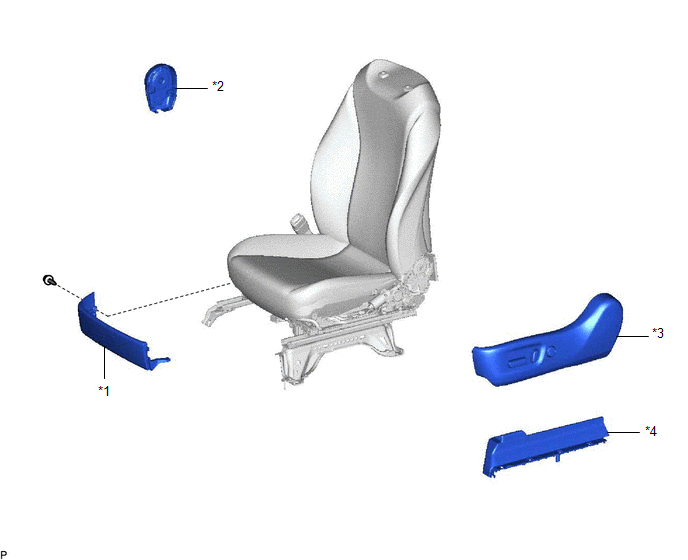

Fig 1: Seat Back Heater (For Front Side) Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT INNER NO. 1 SEAT CUSHION SHIELD	*2	FRONT INNER SEAT CUSHION SHIELD
*3	FRONT SEAT CUSHION SHIELD	*4	FRONT SEAT LEG COVER

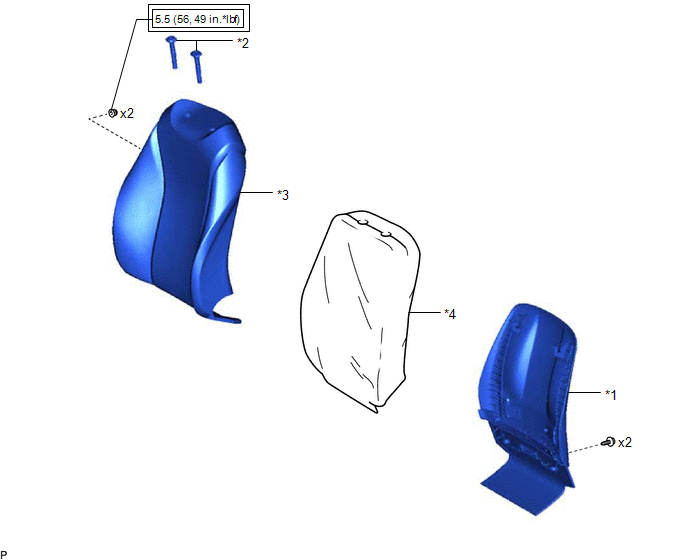

Fig 2: Seat Back Heater (For Front Side) Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FRONT SEAT BACK BOARD SUB-ASSEMBLY	*2	FRONT SEAT HEADREST SUPPORT
*3	FRONT SEATBACK HEATER ASSEMBLY (FRONT SEATBACK WITH COVER PAD)	*4	FRONT SEATBACK PROTECTOR
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-
