Reassembly [06/2015 - ]: Procedure

1. Temporarily install the separate type rear seat cushion cover.

   HINT:

   • When installing the seat cover, refer to the hints to prevent wrinkles in the separate type rear seat cushion cover.

     Refer to PRECAUTION [06/2015 - ]

   • In stitch:
     1. As shown in the illustration, adjust the cover seam allowance portions so that they are in the same direction.

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

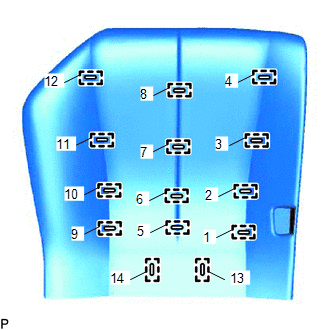

2. Using hog ring pliers, securely install 14 new hog rings in the order shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Be careful not to damage or contaminate the separate type rear seat cushion cover.
   • Align the centers of the straps with the center of the rear seat cushion pad LH so that wrinkles do not form, and securely fasten the hog rings as shown in the illustration.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     *1	Hog Ring
     *a	Hog Ring Pliers

3. Engage the hooks and J hooks to install the separate type rear seat cushion cover.

HINT:

Use the same procedure as for the LH side.

1. Temporarily install the bench type rear seatback cover.

   HINT:

   • When installing the seat cover, refer to the hints to prevent wrinkles in the bench type rear seatback cover.

     Refer to PRECAUTION [06/2015 - ]

   • In stitch:

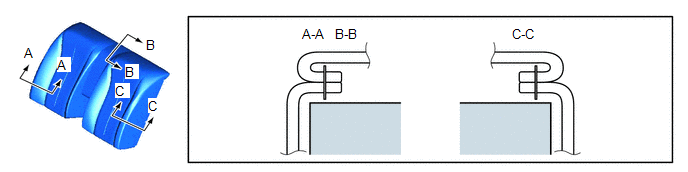

     1. As shown in the illustration, adjust the cover seam allowance portions so that they are in the same direction.

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

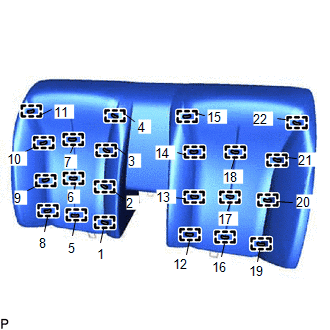

2. Using hog ring pliers, securely install 22 new hog rings in the order shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Be careful not to damage or contaminate the bench type rear seatback cover.
   • Align the centers of the straps with the center of the rear seatback pad so that wrinkles do not form, and securely fasten the hog rings as shown in the illustration.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     *1	Hog Ring
     *a	Hog Ring Pliers

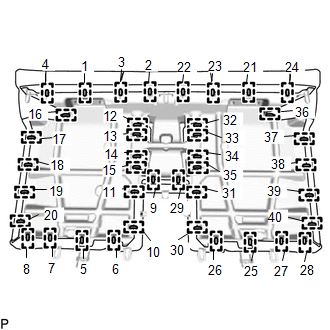

3. Using hog ring pliers, securely install 40 new hog rings in the order shown in the illustration, and install the bench type rear seatback cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Be careful not to damage or contaminate the bench type rear seat back cover.
   • Align the centers of the straps with the center of the rear seatback pad so that wrinkles do not form, and securely fasten the hog rings as shown in the illustration.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     *1	Hog Ring
     *a	Hog Ring Pliers

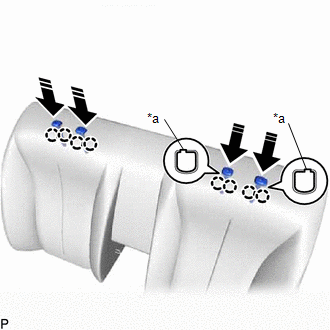

1. Engage the protrusion of the rear seat headrest supports with the groove in the installation portion of the rear seatback frame sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protrusion
   	Install in this Direction

2. Push in the direction indicated by the arrows in the illustration, engage the claws to install the 4 rear seat headrest supports.

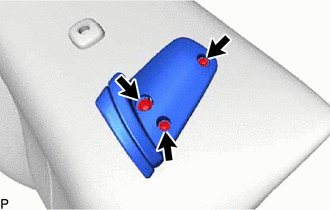

1. Install the rear seat shoulder belt guide LH with the 3 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

1. Install the 2 rear seat headrest assemblies.
