Disassembly [06/2015 - ]: Procedure

  1. REMOVE REAR SEAT HEADREST ASSEMBLY
    1. Remove the 2 rear seat headrest assemblies.
  2. REMOVE REAR SEAT SHOULDER BELT GUIDE LH
    1. Remove the 3 screws and rear seat shoulder belt guide LH.
      GTY579492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SEAT SHOULDER BELT GUIDE RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE REAR SEAT HEADREST SUPPORT

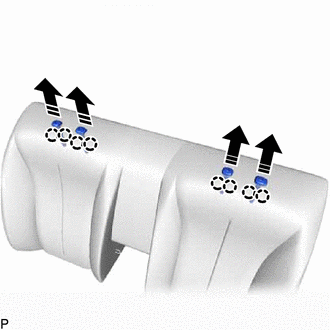

    1. Pull in the direction indicated by the arrows in the illustration, disengage the claws to remove the 4 rear seat headrest supports.
      GTY543165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE BENCH TYPE REAR SEATBACK COVER

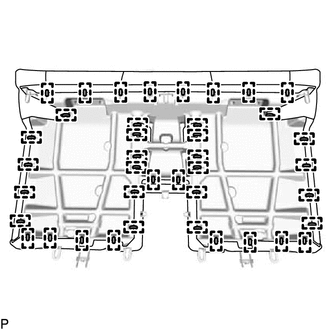

    1. Remove the 40 hog rings.
      GTY599349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

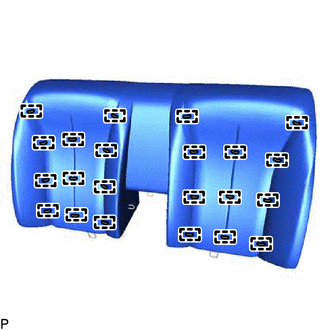

    2. Remove the 22 hog rings and bench type rear seatback cover.
      GTY546900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER (for LH Side)
    1. Disconnect the J hooks.
      GTY579485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

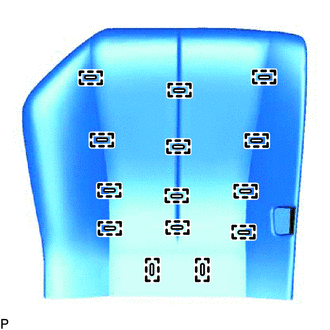

    2. Remove the 14 hog rings and separate type rear seat cushion cover.
      GTY606627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.
