Components [06/2015 - ]

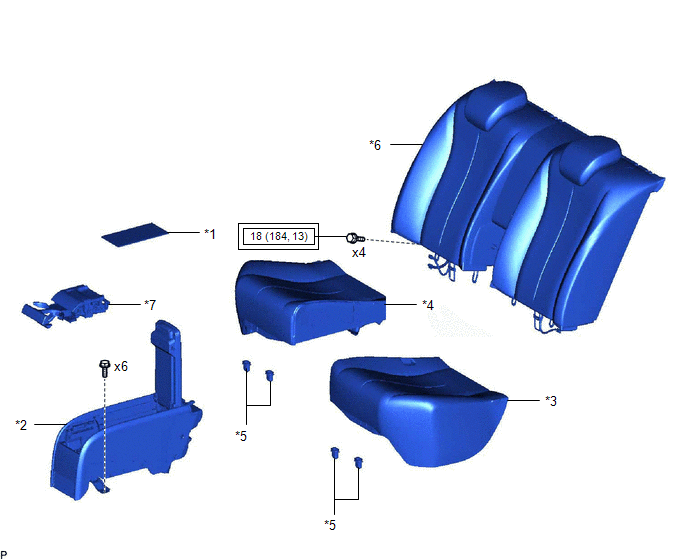

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CONSOLE BOX CARPET	*2	REAR CONSOLE BOX
*3	REAR SEAT CUSHION ASSEMBLY LH	*4	REAR SEAT CUSHION ASSEMBLY RH
*5	REAR SEAT CUSHION LOCK HOOK	*6	REAR SEATBACK ASSEMBLY
*7	UPPER CONSOLE PANEL SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

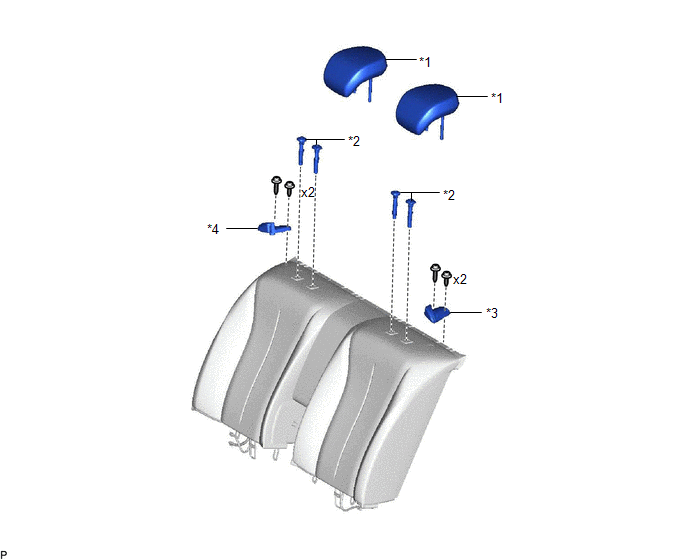

Fig 2: Rear Seat Assembly Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR SEAT HEADREST ASSEMBLY	*2	REAR SEAT HEADREST SUPPORT
*3	REAR SEAT SHOULDER BELT GUIDE LH	*4	REAR SEAT SHOULDER BELT GUIDE RH

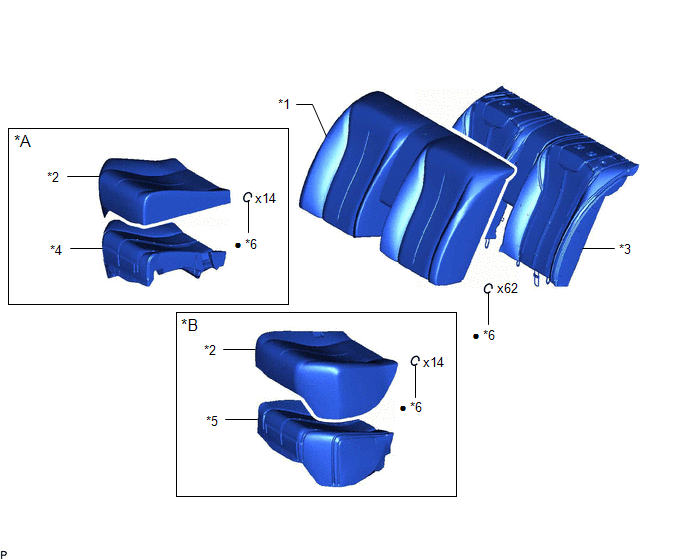

Fig 3: Rear Seat Assembly Replacement Components (3 Of 3)

*A	For RH Side	*B	For LH Side
*1	BENCH TYPE REAR SEATBACK COVER	*2	SEPARATE TYPE REAR SEAT CUSHION COVER
*3	REAR SEATBACK PAD	*4	REAR SEAT CUSHION PAD RH
*5	REAR SEAT CUSHION PAD LH	*6	Hog Ring
•	Non-reusable part	-	-
