Inspection [06/2015 - ]: Procedure
- INSPECT FRONT POWER SEAT SWITCH (w/o Seat Memory Switch)
- Check the resistance.

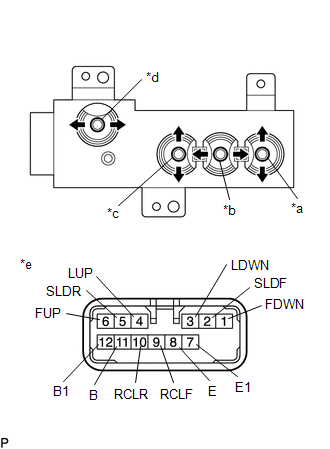

*a Front Vertical Switch *b Slide Switch *c Lifter Switch *d Reclining Switch *e Component without harness connected
(Front Power Seat Switch)- Measure the resistance according to the value(s) in the table below.
Standard Resistance
SLIDE SWITCH
Tester Connection Switch Condition Specified Condition 5 (SLDF) - 11 (B)
5 (SLDF) - 12 (B1)Front Below 1 Ω 2 (SLDR) - 8 (E)
2 (SLDR) - 7 (E1)5 (SLDF) - 8 (E)
5 (SLDF) - 7 (E1)OFF 2 (SLDR) - 8 (E)
2 (SLDR) - 7 (E1)5 (SLDF) - 8 (E)
5 (SLDF) - 7 (E1)Rear 2 (SLDR) - 11 (B)
2 (SLDR) - 12 (B1)FRONT VERTICAL SWITCH
Tester Connection Switch Condition Specified Condition 6 (FUP) - 11 (B)
6 (FUP) - 12 (B1)Up Below 1 Ω 1 (FDWN) - 8 (E)
1 (FDWN) - 7 (E1)6 (FUP) - 8 (E)
6 (FUP) - 7 (E1)OFF 1 (FDWN) - 8 (E)
1 (FDWN) - 7 (E1)6 (FUP) - 8 (E)
6 (FUP) - 7 (E1)Down 1 (FDWN) - 11 (B)
1 (FDWN) - 12 (B1)LIFTER SWITCH
Tester Connection Switch Condition Specified Condition 4 (LUP) - 11 (B)
4 (LUP) - 12 (B1)Up Below 1 Ω 3 (LDWN) - 8 (E)
3 (LDWN) - 7 (E1)4 (LUP) - 8 (E)
4 (LUP) - 7 (E1)OFF 3 (LDWN) - 8 (E)
3 (LDWN) - 7 (E1)4 (LUP) - 8 (E)
4 (LUP) - 7 (E1)Down 3 (LDWN) - 11 (B)
3 (LDWN) - 12 (B1)RECLINING SWITCH
Tester Connection Switch Condition Specified Condition 9 (RCLF) - 11 (B)
9 (RCLF) - 12 (B1)Front Below 1 Ω 10 (RCLR) - 8 (E)
10 (RCLR) - 7 (E1)9 (RCLF) - 8 (E)
9 (RCLF) - 7 (E1)OFF 10 (RCLR) - 8 (E)
10 (RCLR) - 7 (E1)9 (RCLF) - 8 (E)
9 (RCLF) - 7 (E1)Rear 10 (RCLR) - 11 (B)
10 (RCLR) - 12 (B1)If the result is not as specified, replace the front power seat switch.
- Measure the resistance according to the value(s) in the table below.
- Check the resistance.
