Removal [06/2015 - 11/2018]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [06/2015 - 11/2018]

  2. REMOVE FRONT SEAT LEG COVER

    See step  6

  3. REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD

    See step  7

  4. REMOVE RECLINING POWER SEAT SWITCH KNOB

    See step  8

  5. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

    See step  9

  6. REMOVE FRONT SEAT CUSHION SHIELD

    See step  10

  7. REMOVE POSITION CONTROL ECU AND SWITCH ASSEMBLY

    See step  11

  8. REMOVE POWER SEAT SWITCH ASSEMBLY
    1. Disengage the claws to remove the power seat switch assembly.

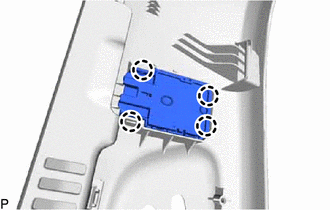

      GTY546514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
