Replacement [06/2015 - ]: Procedure

  1. REMOVE COURTESY LIGHT ASSEMBLY

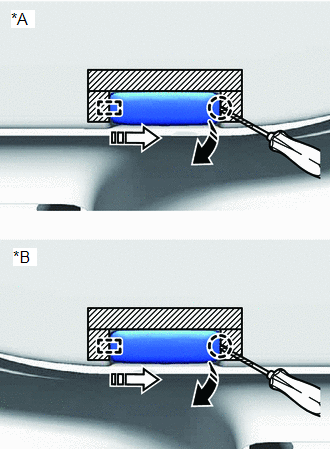

    1. Apply protective tape as shown in the illustration.
      GTY555517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Passenger Side
      *B Driver Side
      Protective Tape
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Using a screwdriver with its tip wrapped in protective tape, disengage the claw and guide as shown in the illustration.
    3. Disconnect the connector to remove the courtesy light assembly.
  2. REMOVE COURTESY LIGHT BULB
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw.
      GTY542362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Courtesy Light Housing
      *2 Courtesy Light Cover
      *a Protective Tape
      Remove in this Direction
    2. Remove the courtesy light housing with courtesy light cover as shown in the illustration.
    3. Remove the courtesy light cover as shown in the illustration.
      GTY576077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Remove the courtesy light bulb as shown in the illustration.
      GTY579168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. INSTALL COURTESY LIGHT BULB
    1. Install the courtesy light bulb as shown in the illustration.
      GTY596736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the courtesy light cover as shown in the illustration.
      GTY608824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Engage the claw to install the courtesy light housing with courtesy light cover as shown in the illustration.
      GTY600072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Courtesy Light Housing
      *2 Courtesy Light Cover
      Install in this Direction
  4. INSTALL COURTESY LIGHT ASSEMBLY
    1. Connect the connector.

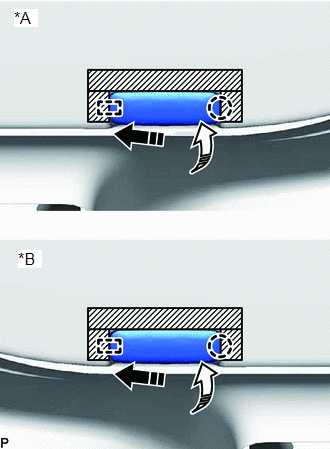

    2. Engage the guide and claw to install the courtesy light assembly as shown in the illustration.
      GTY570852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Passenger Side
      *B Driver Side
      Protective Tape
      Install in this Direction (1)
      Install in this Direction (2)
    3. Remove the protective tape.
