Components [06/2015 - ]

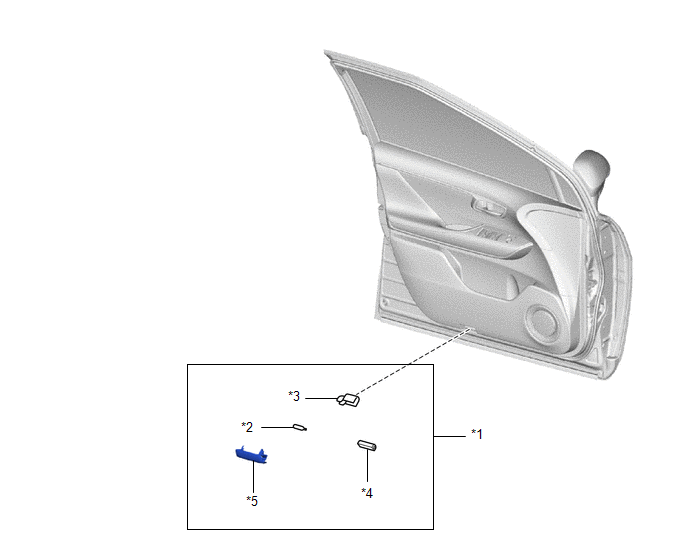

Fig 1: Door Courtesy Light (For Front Side) Replacement Components
GTY566272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COURTESY LIGHT ASSEMBLY *2 COURTESY LIGHT BULB
*3 COURTESY LIGHT COVER *4 COURTESY LIGHT HOUSING
*5 COURTESY LIGHT LENS - -
