Parts Location [06/2015 - ]: Illustration

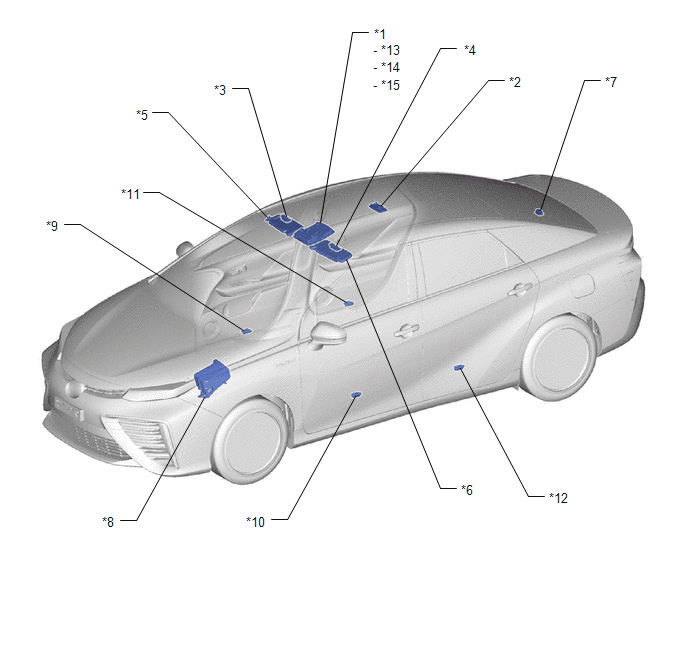

| *1 | MAP LIGHT ASSEMBLY | *2 | NO. 1 ROOM LIGHT ASSEMBLY |
| *3 | VANITY LIGHT ASSEMBLY RH | *4 | VANITY LIGHT ASSEMBLY LH |
| *5 | VISOR ASSEMBLY RH | *6 | VISOR ASSEMBLY LH |
| *7 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *8 | MOTOR COMPARTMENT RELAY BLOCK - DC/DC FUSE |
| *9 | FRONT COURTESY LIGHT ASSEMBLY RH | *10 | FRONT COURTESY LIGHT ASSEMBLY LH |
| *11 | REAR COURTESY LIGHT ASSEMBLY RH | *12 | REAR COURTESY LIGHT ASSEMBLY LH |
| *13 | DOME LIGHT | *14 | DOME LIGHT |
| *15 | CENTER CONSOLE ILLUMINATION LIGHT | - | - |

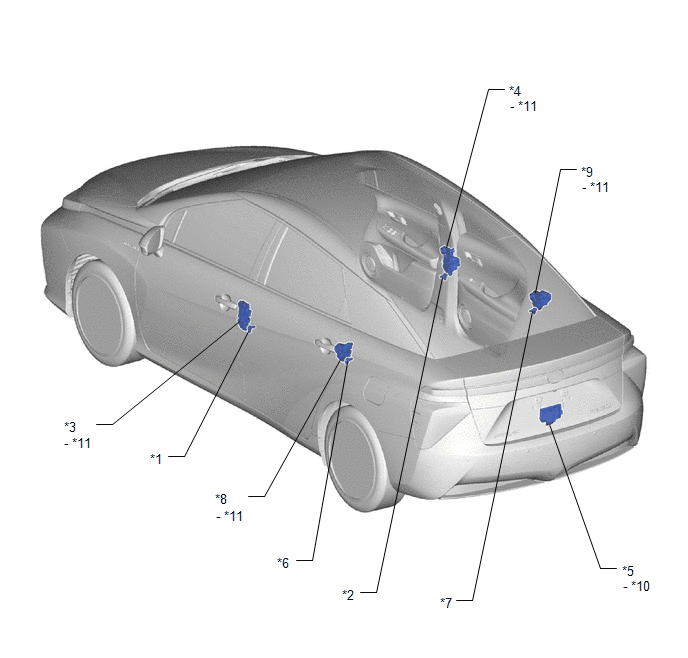

| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *3 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH | *4 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY RH |
| *5 | LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *8 | REAR DOOR LOCK ASSEMBLY LH |
| *9 | REAR DOOR LOCK ASSEMBLY RH | *10 | LUGGAGE COMPARTMENT DOOR COURTESY LIGHT SWITCH ASSEMBLY |
| *11 | DOOR LOCK POSITION SWITCH | - | - |
| *1 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH | *2 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | POWER SWITCH |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | DLC3 |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ACC RELAY - ECU-B NO. 4 FUSE - IG1 NO. 3 RELAY - DOME CUT RELAY - ECU-IG1 NO. 1 FUSE - DOME FUSE |
*8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
