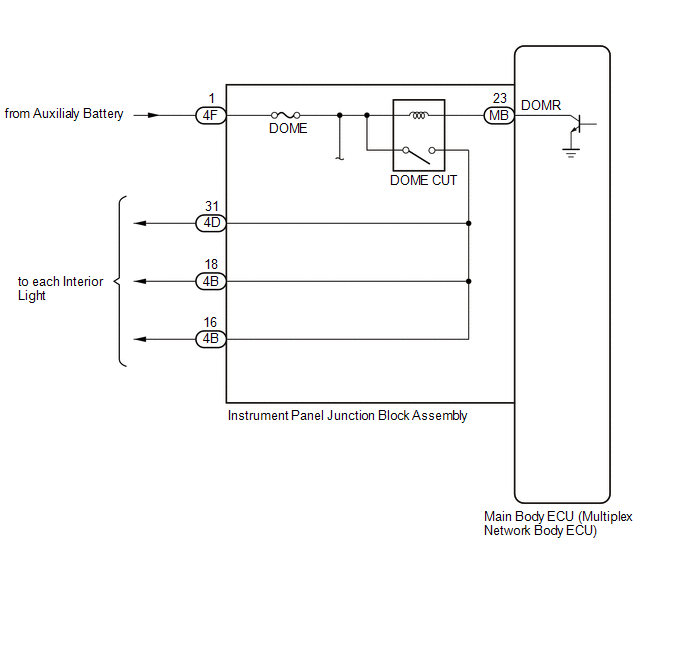

Interior Light Auto Cut Circuit [06/2015 - ]: Wiring Diagram

GTY606378

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
