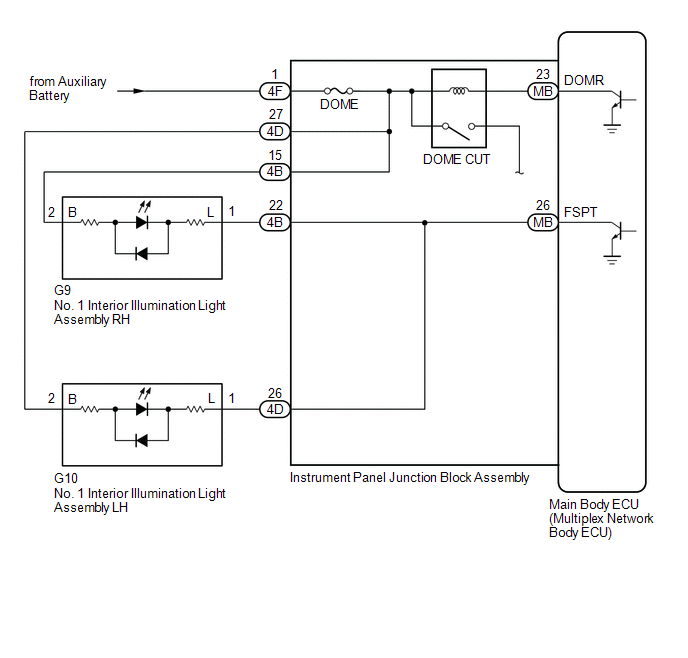

Illumination Circuit [06/2015 - ]: Wiring Diagram

GTY561743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
