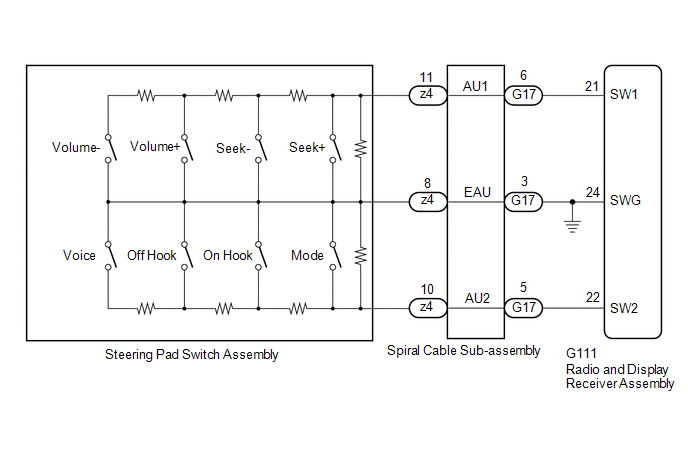

Steering Pad Switch Circuit [01/2018 - ]: Wiring Diagram

GTY856798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
