Microphone Circuit [01/2018 - ]: Wiring Diagram

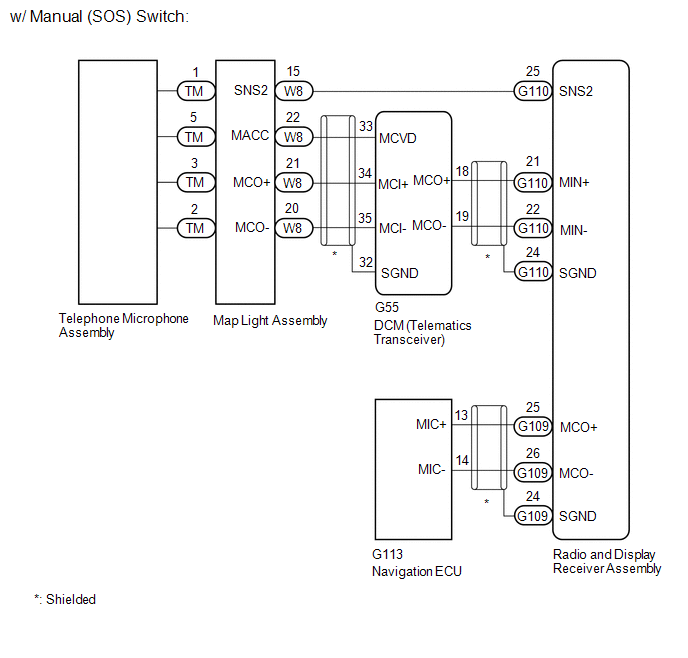

GTY911778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

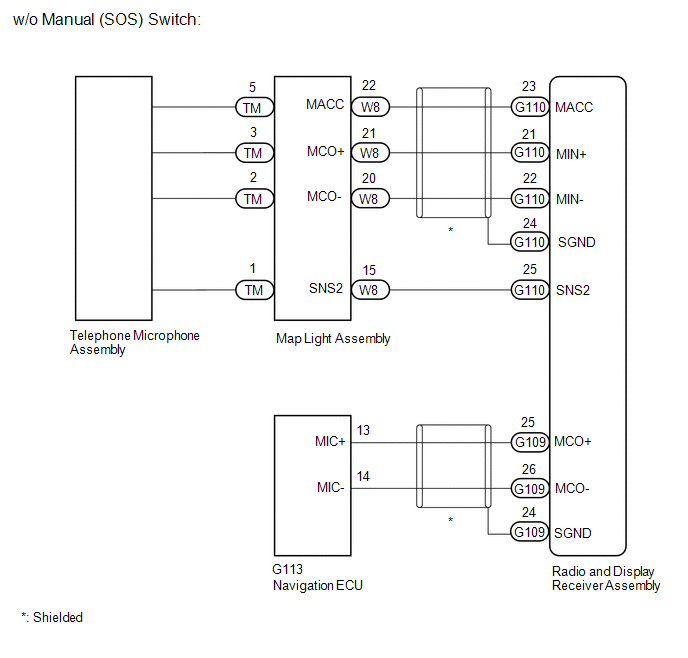

GTY906818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
