Parts Location [01/2018 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

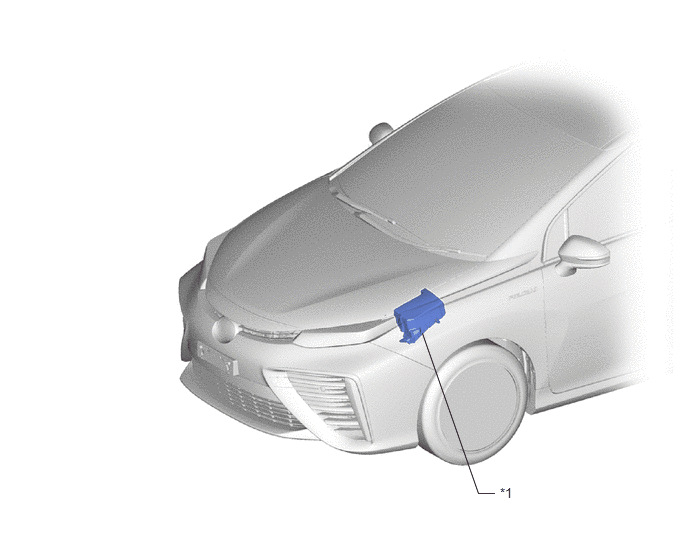

*1

NO. 1 MOTOR COMPARTMENT RELAY BLOCK - RADIO NO. 2 FUSE

-

-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

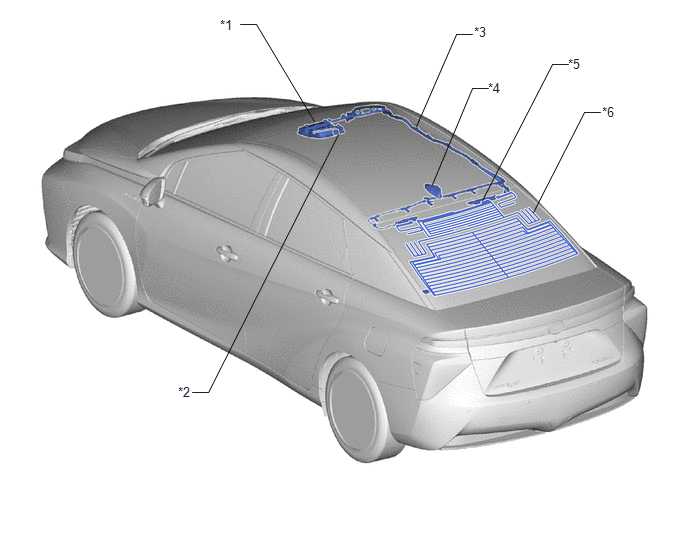

*1	MAP LIGHT ASSEMBLY	*2	TELEPHONE MICROPHONE ASSEMBLY
*3	NO. 2 ANTENNA CORD SUB-ASSEMBLY	*4	TELEPHONE ANTENNA ASSEMBLY - SDARS
*5	NO. 1 AMPLIFIER ANTENNA ASSEMBLY	*6	WINDOW GLASS ANTENNA WIRE - FM MAIN - FM SUB - AM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

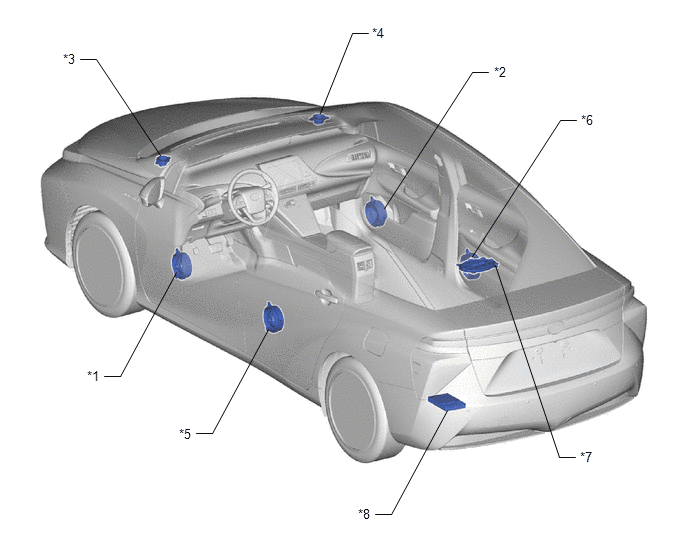

*1	FRONT NO. 1 SPEAKER ASSEMBLY LH	*2	FRONT NO. 1 SPEAKER ASSEMBLY RH
*3	FRONT NO. 2 SPEAKER ASSEMBLY LH	*4	FRONT NO. 2 SPEAKER ASSEMBLY RH
*5	REAR SPEAKER ASSEMBLY LH	*6	REAR SPEAKER ASSEMBLY RH
*7	REAR NO. 2 SPEAKER ASSEMBLY	*8	STEREO COMPONENT AMPLIFIER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

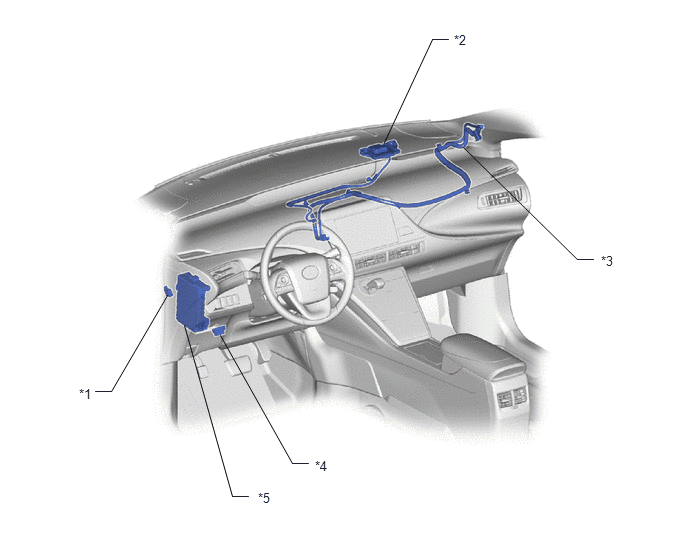

*1	PARKING BRAKE SWITCH ASSEMBLY	*2	NAVIGATION ANTENNA ASSEMBLY - GPS
*3	ANTENNA CORD SUB-ASSEMBLY	*4	DLC3
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE - PANEL FUSE - AMP NO. 1 FUSE - AMP NO. 2 FUSE - A/BAG-IG2 FUSE - MAYDAY FUSE	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

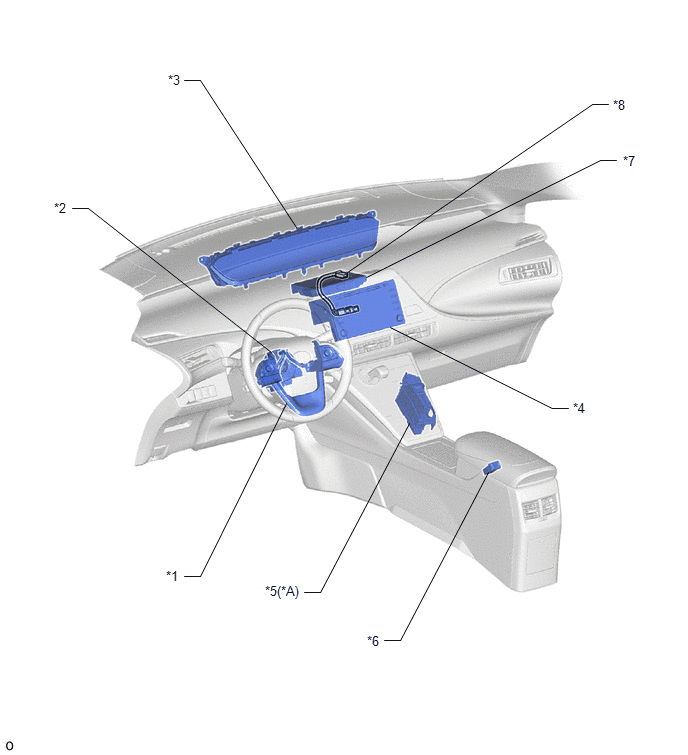

*A	w/ Manual (SOS) Switch	-	-
*1	STEERING PAD SWITCH ASSEMBLY	*2	SPIRAL CABLE SUB-ASSEMBLY
*3	COMBINATION METER ASSEMBLY	*4	RADIO AND DISPLAY RECEIVER ASSEMBLY
*5	DCM (TELEMATICS TRANSCEIVER)	*6	NO. 1 STEREO JACK ADAPTER ASSEMBLY
*7	NAVIGATION ECU	*8	NO. 1 NAVIGATION WIRE
