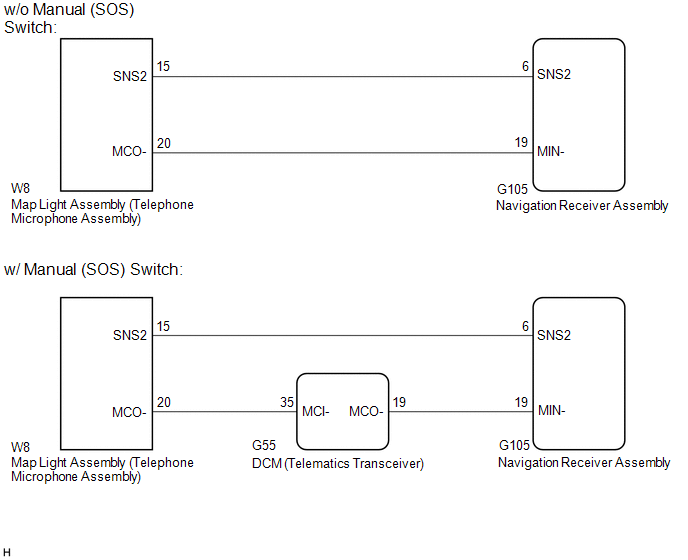

DTC B1579: Voice Recognition Microphone Disconnected [06/2015 - 01/2018]: Wiring Diagram

GTY545614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
