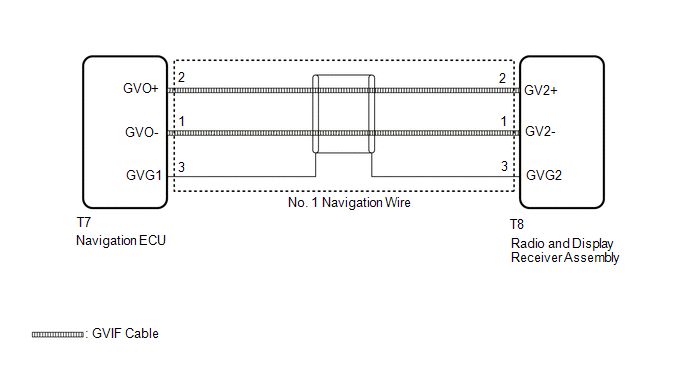

DTC B153A: GVIF Disconnected (from Extension Module to H/U) [01/2018 - ]: Wiring Diagram

GTY906251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
